Solenoid Directional Valve 3/8" - max. 50 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDAMV504E

  Manufacturer

  CharacteristicsWith emergency operation
  2x double acting

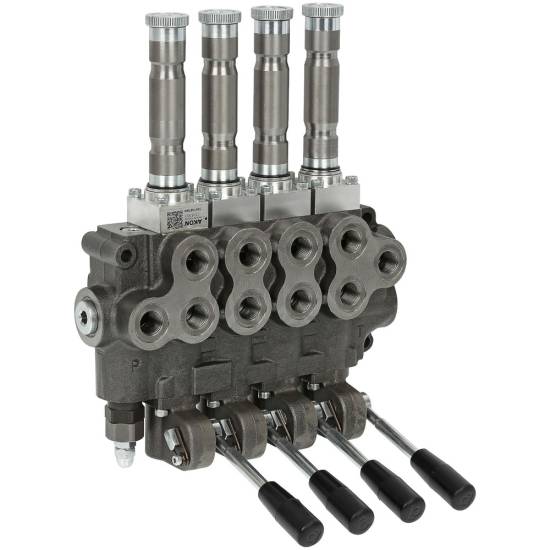

  Electrically controlled directional valve with adjustable pressure relief valve. The valve is supplied with a lever.
  The valve package is suitable for, among others, sweepers, agricultural machinery, hydraulic presses, cranes, concrete pumps, and front loaders.

  Technical specification:
  - load-holding valve
  - material: cast iron housing, sections of chrome-plated carbon steel, NBR seal
  - 4 sections
  - 2x double-acting function
  - max. flow 50 l/min
  - max. working pressure 350 bar
  - max. pressure return line 30 bar
  - P-port G 1/2"
  - A/B-port G 3/8"
  - T-port G 1/2"
