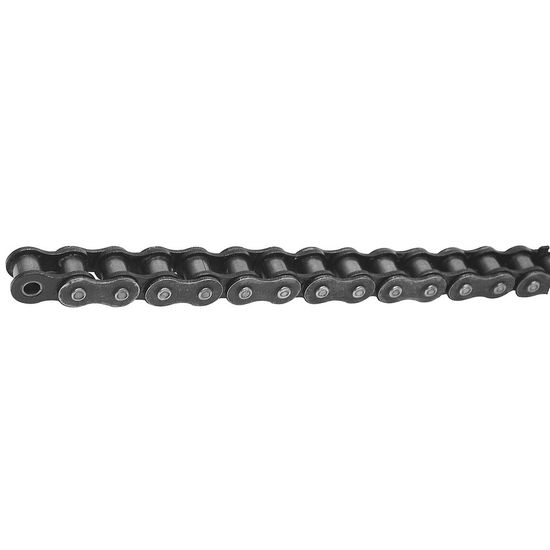

Roller chain 3/8 Din8187 5 Meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK06B1

  Manufacturer

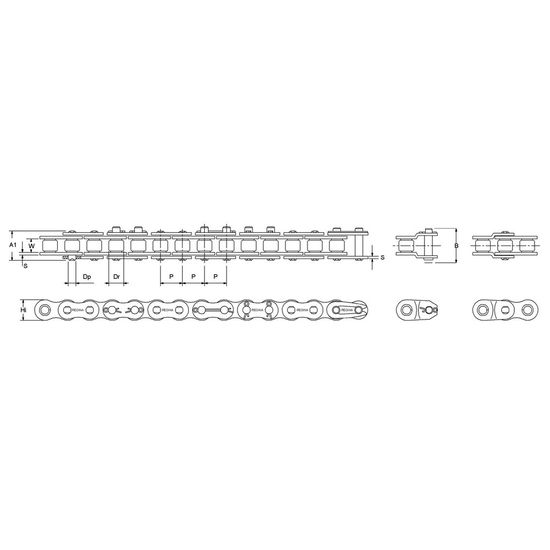

  Characteristics- Length: 5 meters
  - pitch 3/8 inch

  - Length: 5 meters
  - Pitch: 3/8""
  - DR roller Ø mm: 6.35
  - W inner dimension min. mm: 5.72
  - HI height max. mm: 8.26
  - S material thickness mm: 1.27 / 1.03
  - DP pin thickness max. mm: 3.28
  - A1 width from rivet end mm: 12.80
  - B extension width mm: 19
  - contact area mm²: 28
  - breaking load N: 70
  - min. breaking strength kN: 8.90
  - average breaking strength kN: 9.80
  - weight kg/m: 0.39
