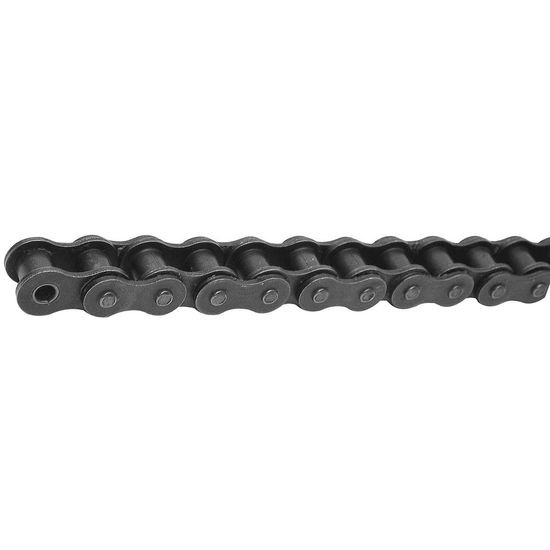

Roller chain Asa 1 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR16A1

  ManufacturerREGINA

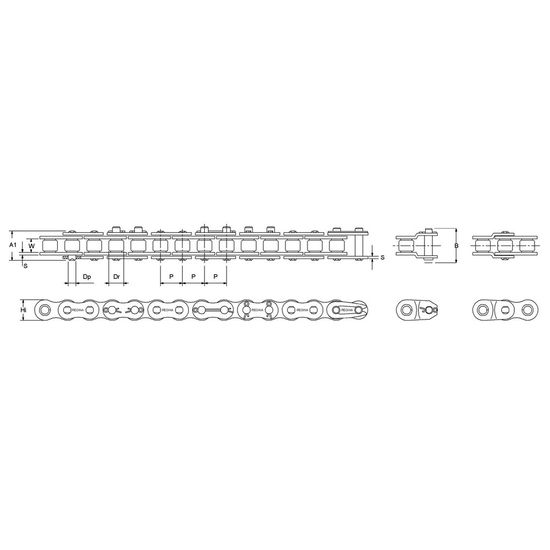

  Characteristics- Length: 5 meters
  - division 1 inch

  - Length: 5 meters
  - 1-row
  - P-pitch: 1"
  - Diameter of DR roller mm: 15.88
  - Minimum W inner dimension mm: 15.75
  - Maximum HI height mm: 24.13
  - Material thickness S mm: 3.15
  - TP cross pitch:
  - Maximum DP pin thickness mm: 7.94
  - A1 width from rivet end mm: 33.50
  - B extension width mm: 40.00
  - Bearing area mm²: 180
  - Breaking load N: 500
  - Min. breaking strength kN: 55.60
  - Average breaking strength kN: 64.70
  - Weight kg/m: 2.57
