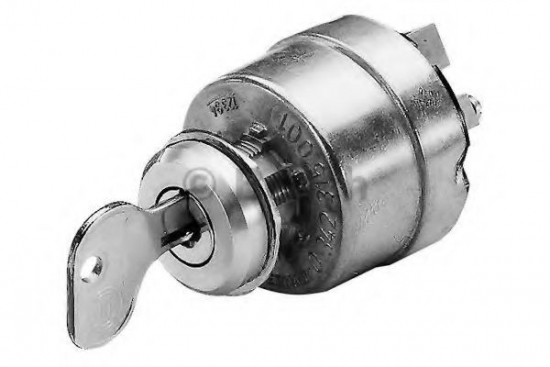

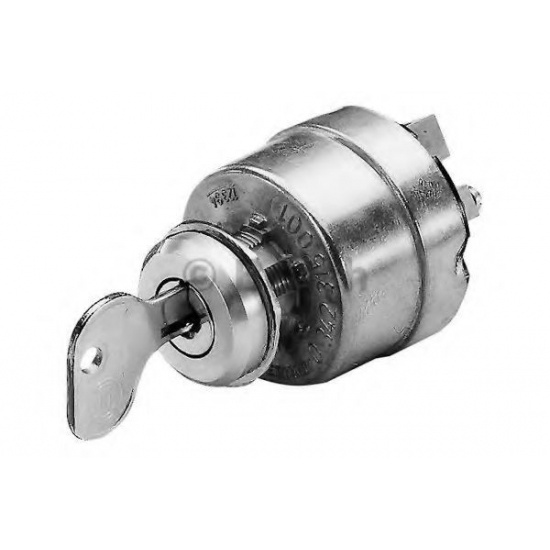

BOSCH Glow plug switch E30

• Info
• Stock status

  Product ID2500342315001

  ManufacturerBOSCH

  Characteristics

  342315001, 0342315001

  12 V / 24 V, safety lock,
  Key can only be removed when in "off" position
  Lock no. E30
  Screw connections, load 13 A 24 V continuous operation clamp 15 33 A / 24 V clamp 17, 19. Duty cycle 2 min. 18 A / 12 V clamp 50a, 9 A / 24 V clamp 50a.
  Switching positions:
  O = off
  1 = on
  2 = pre-heating
  3 = start
  Mounting: with round nut M22 x 1
  Installation opening: Ø 22.5 mm, up to a wall thickness of 6 mm.
