Active Driver Plus M/T 2.2 1 - 13

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID26070486

  Manufacturer

  Characteristics

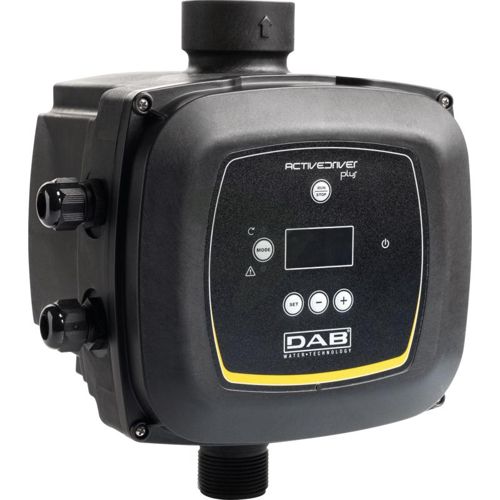

  Active Driver Plus is an inverter used to control electric pumps. The application areas are households, industry, and agriculture with constant pressure pump systems. The OLED screen offers an extremely simple and intuitive interface. It is very easy to view or change the settings, which in turn simplifies maintenance. Installation is also very simple: The installation guide prompts the user for the parameters required for configuration. Active Driver Plus supports a reduction in power consumption thanks to inverter technology, while ensuring maximum comfort with constant pressure. Active Driver Plus is extremely versatile as it does not require any external sensors or check valves. A pressure sensor, flow sensor, and check valve are already integrated in the Active Driver Plus.

  The benefits of Active Driver Plus are:
  - Comfort thanks to constant pressure
  - Energy saving thanks to inverter technology
  - less noise
  - compact form
  - built-in protection: Dry running, overload protection, abnormal voltage, overheat protection, frost protection

  Features:
  - Frequency: 50-60Hz
  - Installation: vertical or horizontal
  - Maximum liquid temperature: 50°C
  - Maximum operating temperature: 60°C
  - Maximum pressure: 13 bar
  - Pressure regulation range: from 1 to 13 bar
  - Suction diameter: 1 1/4" outer thread
  - Outlet diameter: 1 1/2" inner thread
  - Protection: IP55
  - Maximum flow rate: 15 m³ / h
  - Communication interface for groups: Yes, one Active Driver per pump
  - to be used with pumps of type: Surface pumps, submersible pumps 4" and 5" with three-phase (230 V) integrated motor and a motor power consumption of at most 10.5 A
  Pressure range: 1-13 bar
  Performance max. (kW): 2.2
  Maximum inlet temperature: 50°C
  Connection: 1 1/4" female thread (inlet)
  1 1/2" male thread (outlet)
  Motor: 230V /50 Hz
  IP55
  Protection class: IP 55
  Maximum inlet temperature: 50°C
  Pressure range (bar): 1 - 13
  Voltage: 230V /50 Hz
  Performance max. (kW): 2.2
  Connection: 1 1/4" female thread (inlet)
  1 1/2" male thread (outlet)
