Well Pump S4C-13 M-kit 4200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID26070343

  Manufacturer

  Characteristics

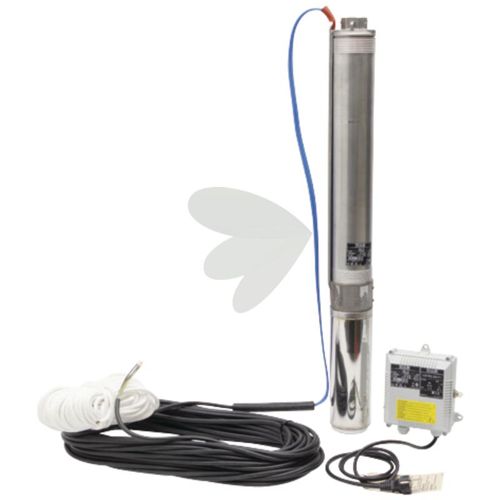

  Multistage electric submersible pump for wells of 4? or larger.
  Pumps can develop high power and head.
  Suitable for pressure boosting and water supply in private and industrial systems, supply of autoclaves, tanks, fire protection and washing systems, as well as irrigation systems.
  The stator is built into a completely sealed stainless steel housing filled with an argon-based gas mixture.
  Motor unit:
  - Submersible, two-pole asynchronous motor, made entirely of stainless steel
  - Activations per hour: max. 20th
  - Flow for motor cooling: 8 cm/sec.
  - Capacitor and voltage protection switch with manual reset in the control unit

  Pump unit:
  - Micro-melt steel lantern and top head
  - Check valve in steel built into the head
  - Maximum allowable amount of sand: 120 g/m³
  Connection: 1 1/4"
  Max head (m): 71.5
  Max inlet temperature: 40°C
  Max flow rate (l/h): 4200
  Max immersion depth (m): -
  Motor: 230V /50 Hz - 750 W
  Protection standard: IP 58
  Cable length (m): 30
