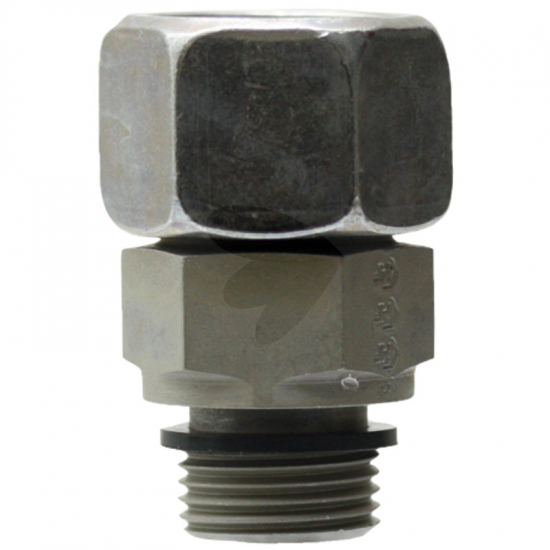

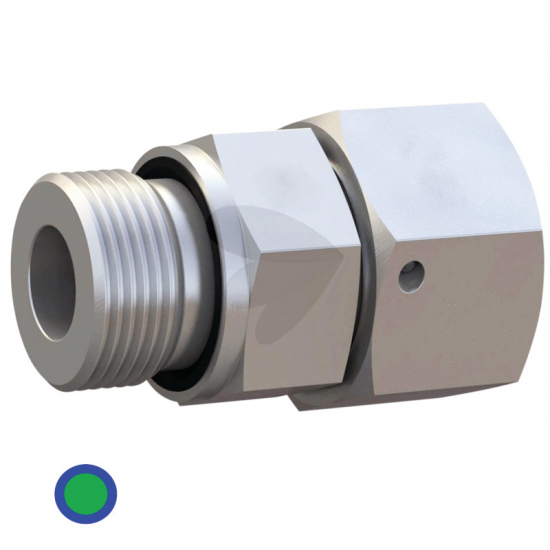

GEVR 10 L 1/4 DKO WD Straight

• Info
• Stock status

  Product ID87003187

  Manufacturer

  Characteristics

  More information

  Series:10 L

  Connection thread:M16 x 1.5

  Screw-in thread:G 1/4"

  L1 (mm):27.5

  L2 (mm):39.5

  S1 (mm):19

  S2 (mm):19

  PN (bar):500

  Material:Steel

  Designation:Straight couplings

  T2 (mm):M16 x 1.5

  Type formula:GEVR

  T1 (mm):G 1/4"

  Surface:Cr6-free

  Weight:54 g

  EAN codes:4059139289981

  • Connection 1: BSP external thread, cylindrical, form E
  • Connection 2: metric nut thread, 24° external cone with O-ring
  • Type: Straight screw coupling
  • Standard: DIN 2353
  Material: Steel, chromium (VI)-free coating
