Double-acting hydraulic cylinder 40x20x150

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDSG40200150

  Manufacturer

  CharacteristicsInstallation length 350 mm
  Working pressure max 250 bar
  Double-acting (Can be made single-acting)

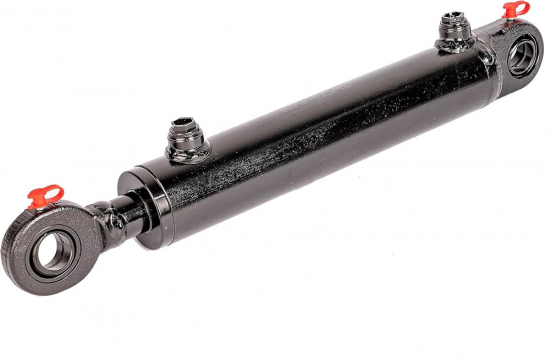

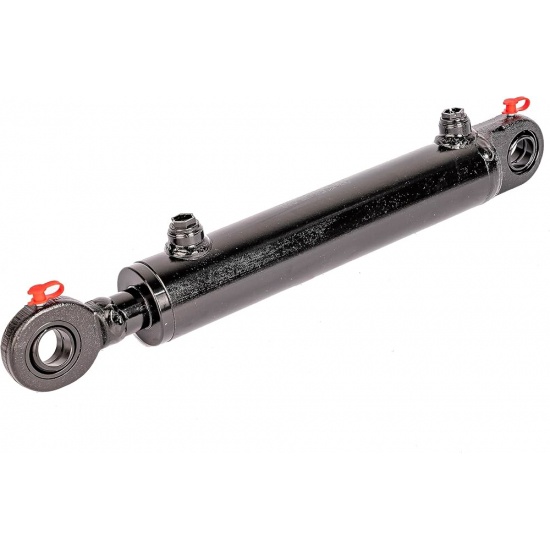

  Double-acting Hydraulic Cylinder 40x20x150.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH14.

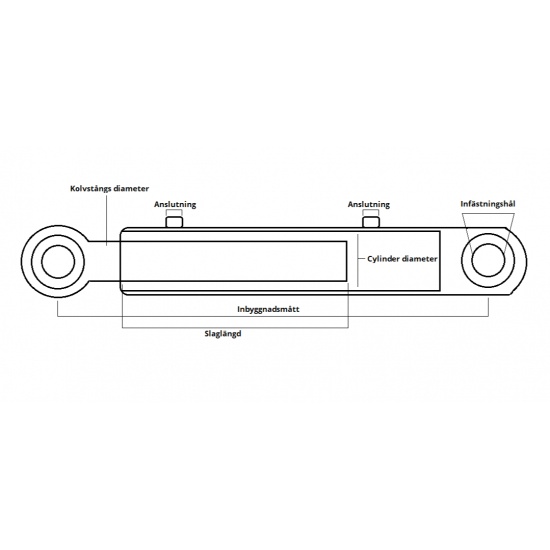

  Technical specification:
  - piston 40 mm
  - rod 20 mm
  - bearing 16 mm
  - thread 1/4"
  - stroke length 150 mm
  - installation dimension 350 mm
  - max working pressure 250 bar
