Hydraulic Cylinder 40X20X200

• Info
• Stock status

  Product IDHS4020200K

  Manufacturer

  CharacteristicsInstallation dimensions 350 mm
  Operating pressure max 210 bar
  Double-acting (Can be made into single-acting)

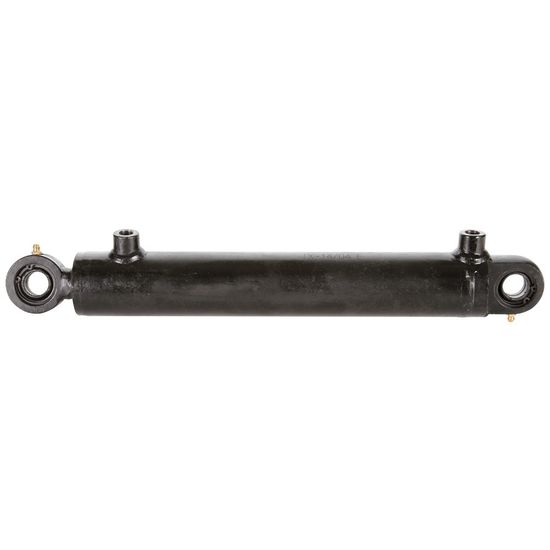

  Double-Acting Hydraulic Cylinder 40x20x200.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with nipple HSH14.

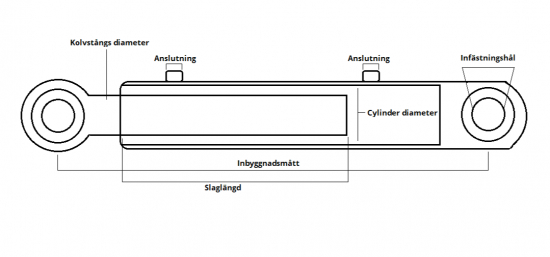

  Technical specification:
  - piston 40 mm
  - rod 20 mm
  - rod end 20 mm
  - thread 1/4"
  - stroke length 200 mm
  - installation dimension 350 mm
  - maximum operating pressure 210 bar
