Hydraulic Cylinder 40x25X350 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS4025350T

  Manufacturer

  CharacteristicsInstallation size 535 mm
  Working pressure max 300 bar
  Double-acting (Can be made single-acting)

  Double Acting Hydraulic Cylinder 40x25x350.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

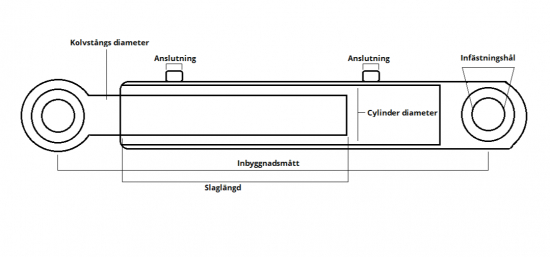

  Technical specification:
  - piston Ø 40 mm
  - A 185 mm
  - B = rod Ø 25 mm
  - C = cylinder outer dimension Ø 50 mm
  - D = rod end bearing Ø 20 mm
  - E = Ø 55 mm
  - thread R 3/8"
  - stroke length 350 mm
  - installation dimension 535 mm
  - maximum working pressure 300 bar
  - unpainted
