Hydraulic Cylinder 40x25X500 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS4025500K

  Manufacturer

  CharacteristicsInstallation size 650 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

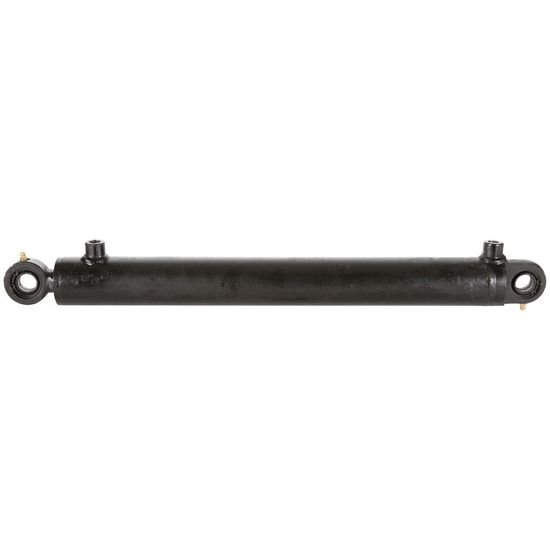

  Double-acting Hydraulic Cylinder 40x25x500.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH14.

  Technical specifications:
  - piston 40 mm
  - rod 25 mm
  - clevis 20 mm
  - thread 1/4"
  - stroke length 500 mm
  - mounting length 650 mm
  - maximum operating pressure 210 bar
