Hydraulic Cylinder 50x30X200 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS5030200K

  Manufacturer

  CharacteristicsInstallation dimensions 392 mm
  Maximum operating pressure 210 bar
  Double-acting (Can be made single-acting)

  Double-acting Hydraulic Cylinder 50x30x200.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

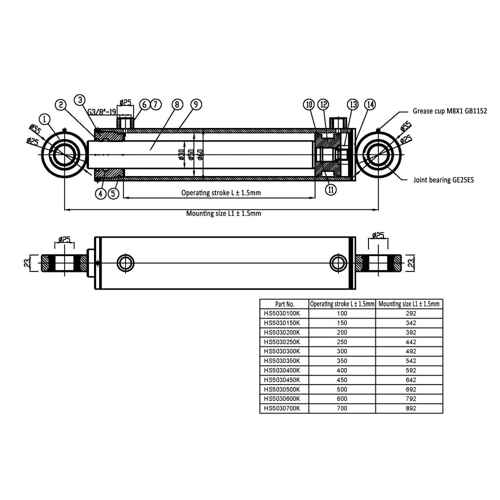

  Technical specifications:
  - piston 50 mm
  - rod 30 mm
  - clevis 25 mm
  - thread 3/8"
  - stroke length 200 mm
  - mounting length 392 mm
  - maximum operating pressure 210 bar
