Hydraulic Cylinder 50x30X250

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDHS5030250K

  Manufacturer

  CharacteristicsInstallation dimensions 442 mm
  Operating pressure max 210 bar
  Double-acting (Can be made single-acting)

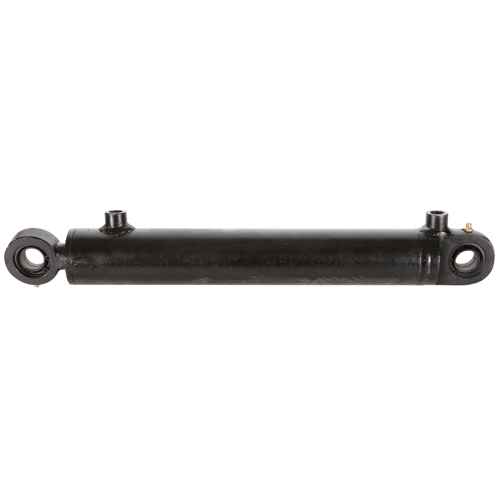

  Double-acting Hydraulic Cylinder 50x30x250.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

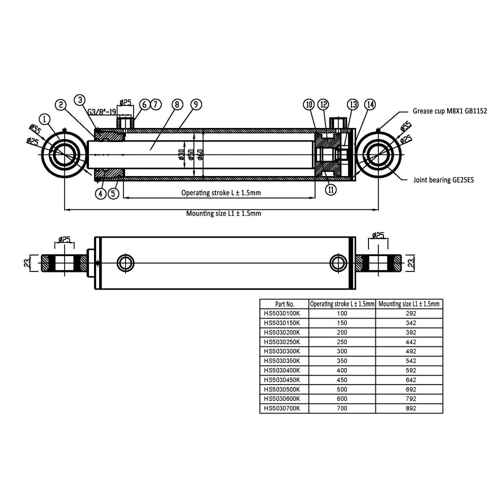

  Technical specifications:
  - piston 50 mm
  - rod 30 mm
  - clevis 25 mm
  - thread 3/8"
  - stroke length 250 mm
  - mounting length 442 mm
  - maximum operating pressure 210 bar
