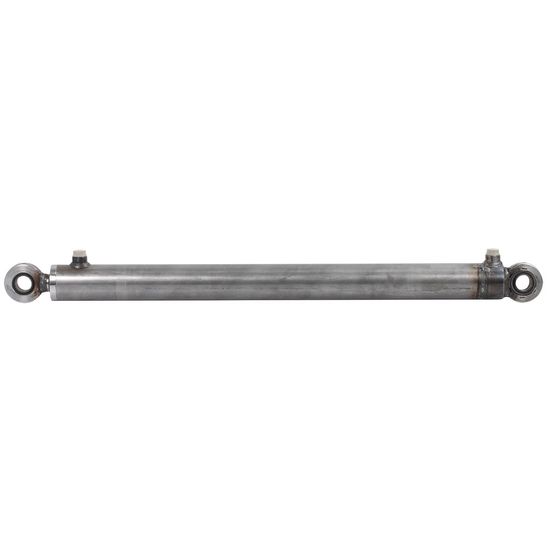

Hydraulic Cylinder 50X30X250

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS5030250T

  Manufacturer

  CharacteristicsInstallation dimensions 460 mm
  Working pressure max 300 bar
  Double-acting (Can be converted to single-acting)

  - LONGLIFE cylinders with improved and reinforced construction (manufactured in Finland)
  - the end of the cylinder tube's head is threaded, so the cylinder can be repaired if necessary
  - the piston rod is attached to the piston with a nyloc nut, additionally glued to minimize the risk of the nut coming loose
  - dual-acting

  Technical data:
  - piston Ø 50 mm
  - rod Ø 30 mm
  - pivot bearing Ø 25 mm / width 20 mm
  - thread G 3/8"
  - stroke 250 mm
  - installation size 460 mm
  - A 210 mm, C Ø 60 mm, D Ø 25 mm, E Ø 65 mm
  - working pressure 300 bar
  - unpainted
