Double Acting Hydraulic cylinder 50x30X300

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDZS50300300

  Manufacturer

  CharacteristicsInstallation length 509 mm
  Working pressure max 250 bar
  Double-acting (Can be made single-acting)

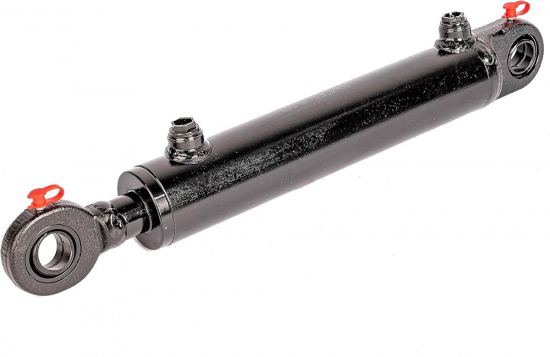

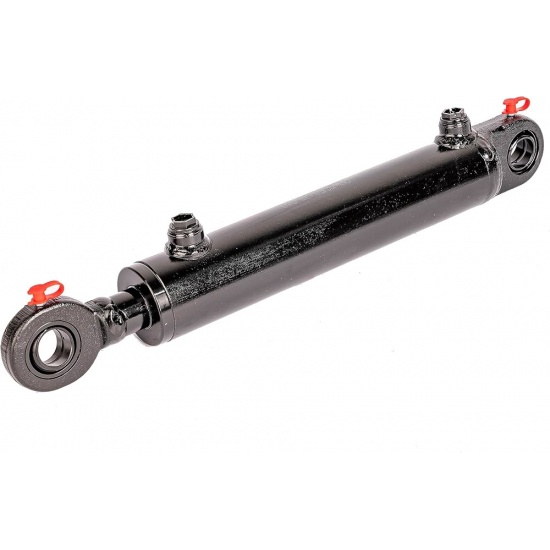

  Double-acting Hydraulic Cylinder 50x30x300.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

  Technical specification:
  - piston 50
  - rod 30
  - bearing 25 mm
  - thread 3/8"
  - stroke length 300 mm
  - installation dimension 509 mm
  - max working pressure 250 bar
