Hydraulic Cylinder 50x30X350 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS5030350K

  Manufacturer

  CharacteristicsInstallation dimensions 542 mm
  Maximum operating pressure 210 bar
  Double-acting (Can be made single-acting)

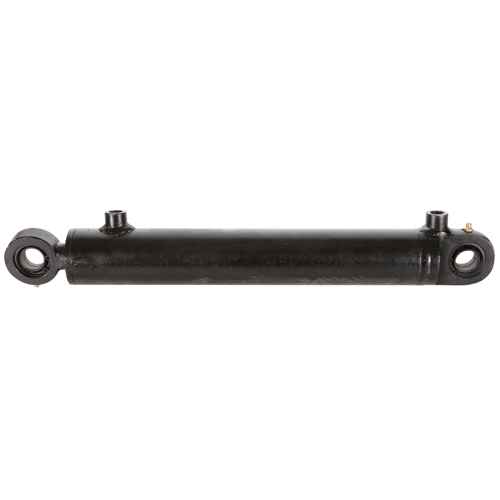

  Double-acting Hydraulic Cylinder 50x30x350.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

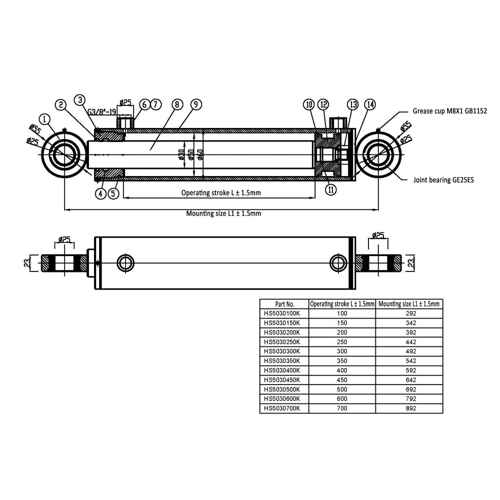

  Technical specification:
  - piston 50mm
  - rod 30mm
  - spherical bearing 25mm
  - thread 3/8"
  - stroke length 350mm
  - overall length 542mm
  - maximum operating pressure 210 bar
