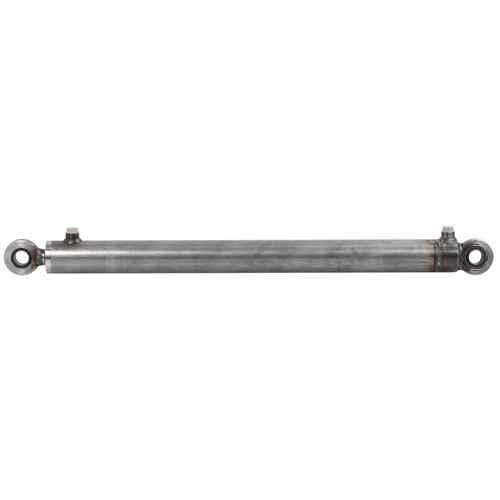

Hydraulic Cylinder 50X30X350 Repainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS5030350J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 560 mm
  Articulation bearing diameter 25 mm
  Double-acting (Can be converted to single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - The end of the cylinder tube is threaded, allowing the cylinder to be repaired when needed
  - The piston rod is attached to the piston with a nyloc nut, which is also glued to minimize the risk of the nut coming loose
  - The cylinder is interchangeable and has the same installation dimensions as HS5030350T
  - Double-acting

  Double-acting Hydraulic Cylinder 50x30x350.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

  Technical data:
  - piston Ø 50 mm
  - rod Ø 30 mm
  - clevis 25 mm
  - thread G 3/8"
  - stroke 350 mm
  - installation dimensions 560 mm
  - A 210 mm, C Ø 60 mm, D Ø 25 mm, E Ø 65 mm
  - operating pressure 300 bar
  - painted over
