Hydraulic Cylinder 50x30x500 Painted

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDHS5030500K

  Manufacturer

  CharacteristicsInstallation dimensions 692 mm
  Maximum operating pressure 210 bar
  Double-acting (Can be made single-acting)

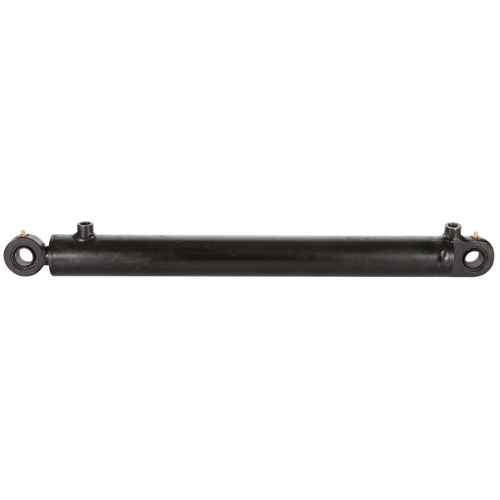

  Double-acting Hydraulic Cylinder 50x30x500.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

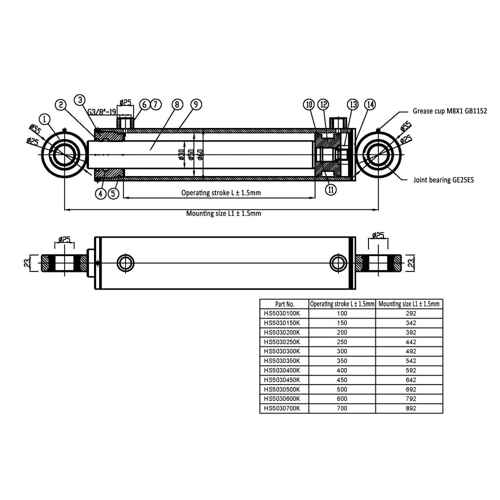

  Technical specification:
  - piston 50mm
  - rod 30mm
  - spherical bearing 25mm
  - thread 3/8"
  - stroke length 500mm
  - overall length 692mm
  - maximum operating pressure 210 bar
