Hydraulic Cylinder 60X30X150

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS6030150K

  Manufacturer

  CharacteristicsInstallation dimension 353 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

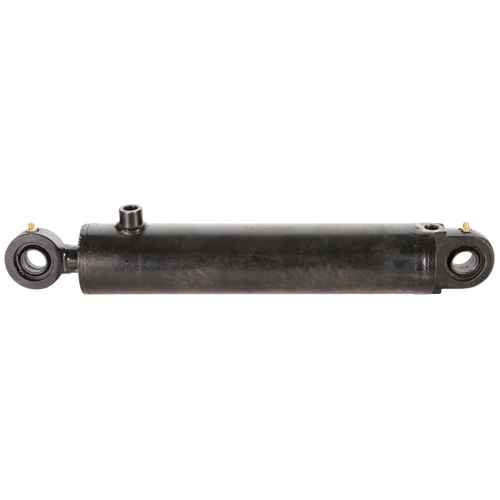

  Double-acting Hydraulic Cylinder 60x30x150.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

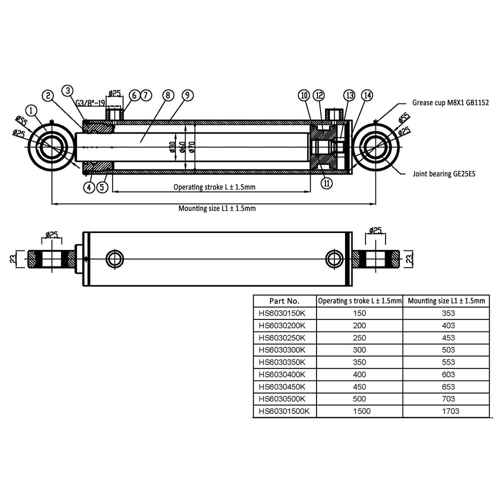

  - piston Ø 60 mm
  - rod Ø 30 mm
  - pivot bearing 25 mm
  - thread 3/8"
  - stroke length 150 mm
  - installation dimension 353 mm
  - maximum operating pressure 210 bar
