Hydraulic Cylinder 60x30X1500

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS60301500K

  Manufacturer

  CharacteristicsInstallation dimension 1703 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

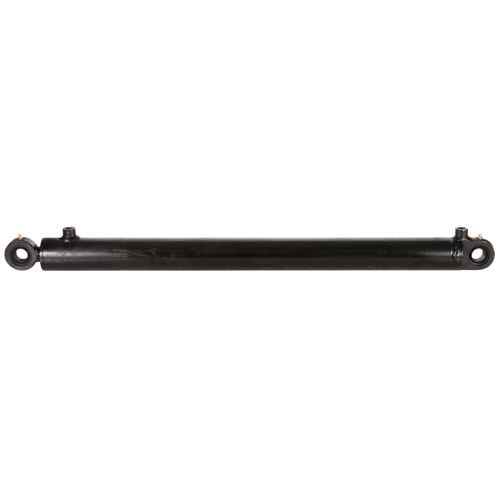

  Double-acting Hydraulic Cylinder 60x30X1500.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

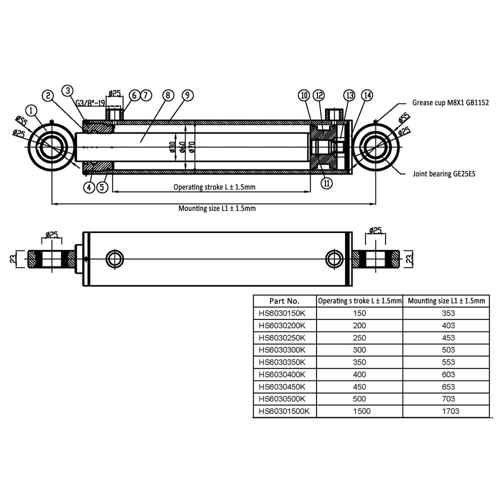

  Technical specification:
  - piston 60mm
  - rod 30mm
  - spherical bearing 25mm
  - thread 3/8"
  - stroke length 1500mm
  - overall length 1703mm
  - maximum operating pressure 210 bar
