Hydraulic Cylinder 60x30X300

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS6030300K

  Manufacturer

  CharacteristicsBuilt-in dimensions 503 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

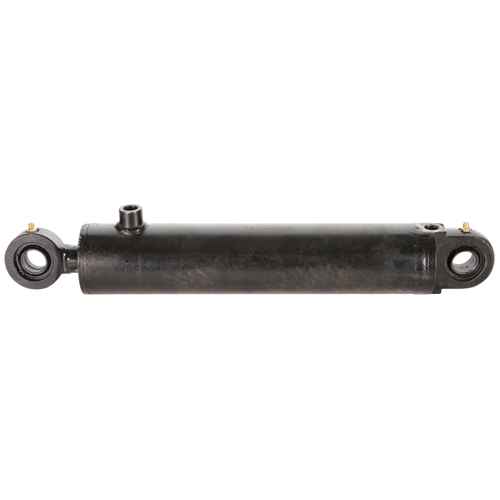

  Double-acting Hydraulic Cylinder 60x30x300.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

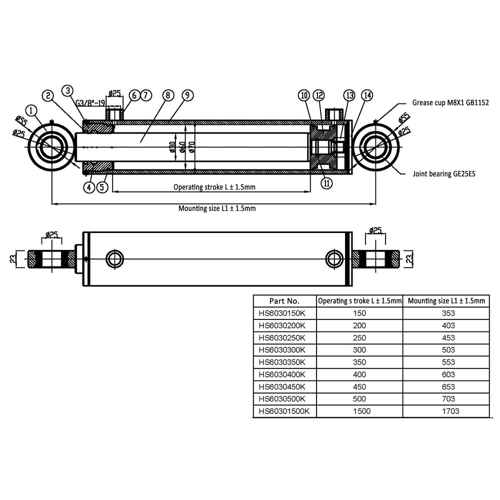

  Technical specification:
  - piston 60 mm
  - rod 30 mm
   -bushing 25 mm
  - thread 3/8"
  - stroke length 300 mm
  - installation measurement 503 mm
  - maximum working pressure 210 bar
