Hydraulic Cylinder 60x30X400

€284
Incl. VAT
We will get back to you with the de Trackable international shipping Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDHS6030400K
    Manufacturer
    CharacteristicsInstallation dimension 603 mm
    Working pressure max 210 bar
    Double-acting (Can be made single-acting)

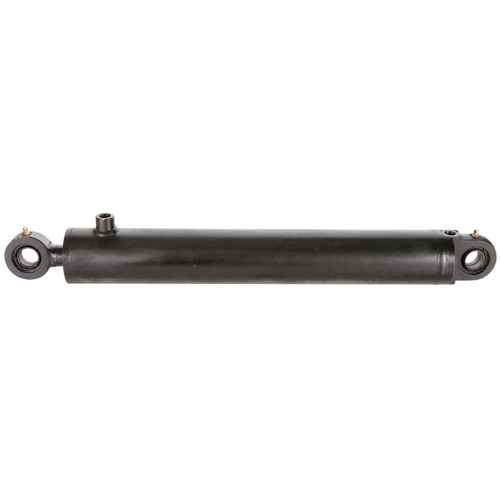

    Double-acting Hydraulic Cylinder 60x30x400.
    The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

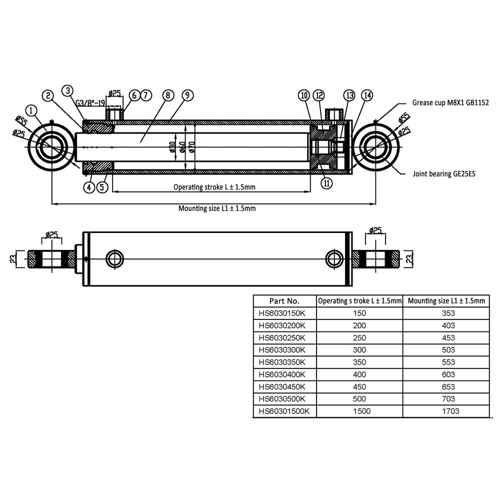

    Technical specification:
    - piston 60 mm
    - rod 30 mm
    - bushing 25 mm
    - thread 3/8"
    - stroke length 400 mm
    - installation measurement 603 mm
    - maximum working pressure 210 bar
