Hydraulic Cylinder 60x30X500

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS6030500K

  Manufacturer

  CharacteristicsInstallation dimension 703 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

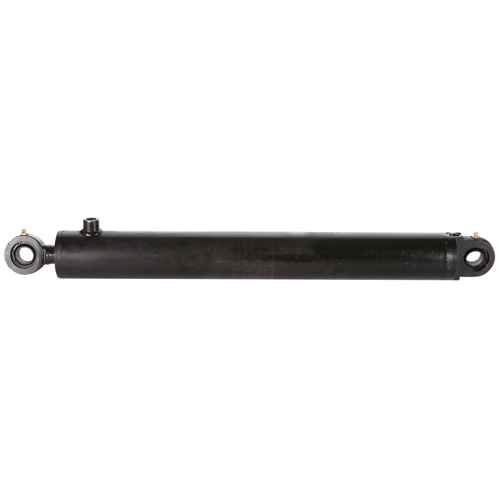

  Double-acting Hydraulic Cylinder 60x30x500.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

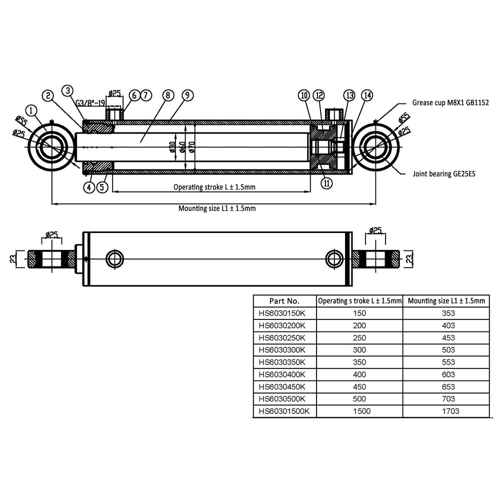

  Technical specification:
  - piston 60 mm
  - rod 30 mm
  - bushing 25 mm
  - thread 3/8"
  - stroke length 500 mm
  - installation measurement 703 mm
  - maximum working pressure 210 bar
