Hydraulic cylinder 63X40X600 Repainted

Qty:

Add to cart

LÀgg i kundvagnen

• Info
• Stock status

  Product IDHS6340600J

  Manufacturer

  CharacteristicsFew left in stock.

  Installation dimension 820 mm
  Maximum working pressure 300 bar
  Double acting (Convertible to single-acting)

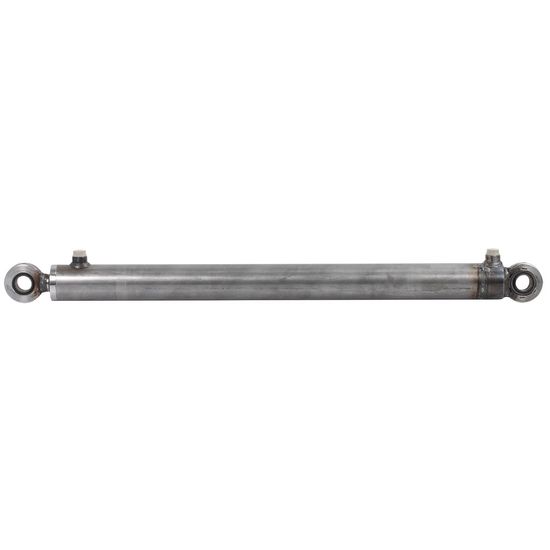

  Double Acting Hydraulic Cylinder 63x40x600.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

  Technical specification:
  - piston Ø 63 mm
  - B = rod Ø 40 mm
  - D = clevis Ø 25 mm
  - E = Ø 65 mm
  - thread R 3/8"
  - stroke length 600 mm
  - installation dimension 820 mm
  - maximum working pressure 300 bar
  - unpainted
