Video

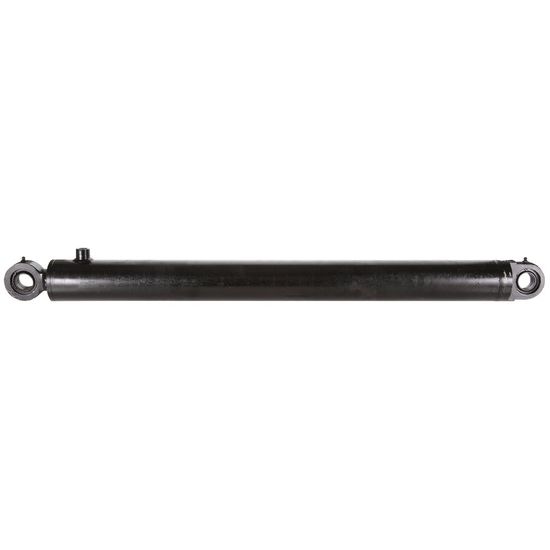

Hydraulic cylinder 63x40x750 Painted
€341
Incl. VAT
- Info
-
Stock statusProduct IDHS6340750KManufacturerCharacteristicsInstallation dimensions 958 mm
Working pressure max 210 bar
Double-acting (Can be converted to single-acting)Double-acting Hydraulic Cylinder 63x40x750.
The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

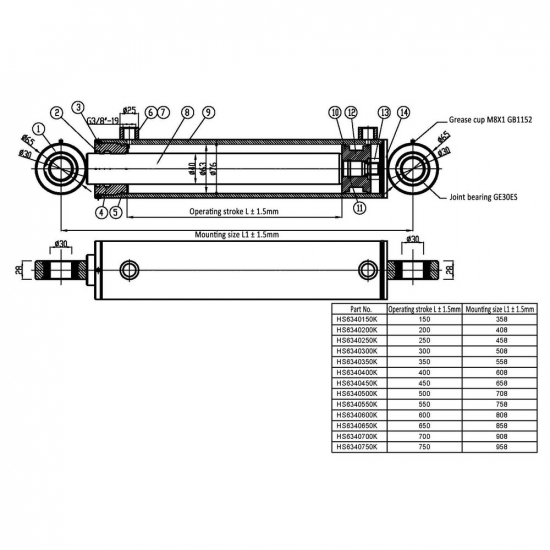

Technical specification:
- piston 63 mm
- rod 40 mm
- pivot bearing 30 mm
- thread 3/8"
- stroke length 750 mm
- installation dimension 958 mm
- working pressure max 210 bar - Product groups
-
Hydraulic Cylinders
