Hydraulic cylinder 63X40X750 Repainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS6340750J

  Manufacturer

  CharacteristicsInstallation dimensions 970 mm
  Maximum working pressure 300 bar
  Double-acting (Can be converted to single-acting)

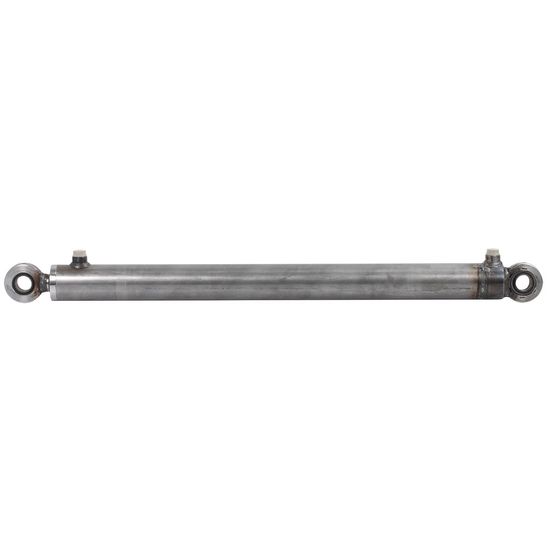

  Double-acting Hydraulic Cylinder 63x40x750.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

  Technical specification:
  - piston Ø 63 mm
  - B = rod Ø 40 mm
  - D = pivot bearing 25 mm
  - E = Ø 65 mm
  - thread R 3/8"
  - stroke length 750 mm
  - installation dimensions 970 mm
  - maximum working pressure 300 bar
  - unpainted
