Hydraulic cylinder 63X40X900

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS6340900J

  Manufacturer

  CharacteristicsFew left in stock.

  Installation dimensions 1120 mm
  Max working pressure 300 bar
  Double-acting (Can be converted to single-acting)

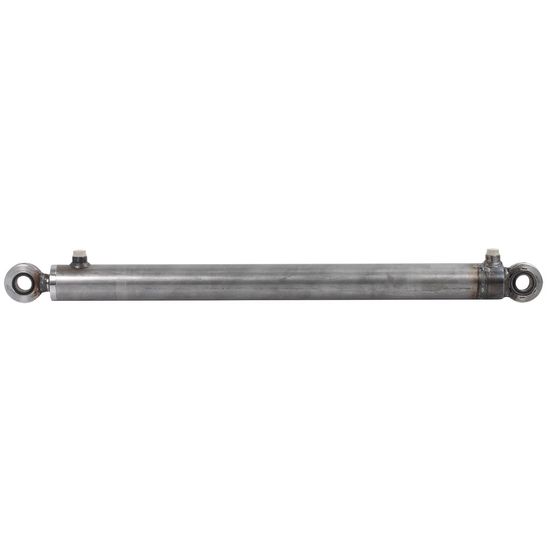

  Double Acting Hydraulic Cylinder 63x40x900.
  The hydraulic cylinder can be converted into single-acting by plugging the upper hole with a nipple HSH38.

  - Longlife cylinder kit, made in Finland, with improved and reinforced construction
  - the end on the cylinder arm side is threaded so that the cylinder can be repaired when needed
  - the piston rod is secured to the piston with a nyloc nut, which is also glued to minimize the risk of the nut coming loose
  - the cylinder is interchangeable and has the same dimensions as HS6340900T
  - double acting
  - unpainted

  Technical data:
  - piston Ø 63 mm
  - rod Ø 40 mm
  - plain bearing Ø 30 mm / width 22 mm
  - thread G 3/8"
  - stroke 900 mm
  - dimensions 1120 mm
  - A 220 mm, C Ø 73 mm, D Ø 30 mm, E Ø 72 mm
  - working pressure 300 bar
