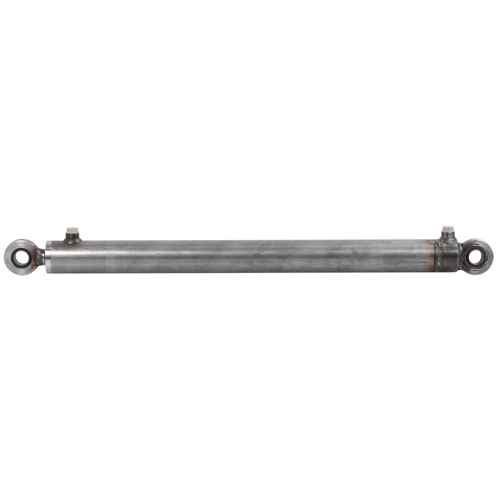

Hydraulic cylinder 70X40X1000 Repainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS70401000J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 1240 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinders with improved and reinforced construction (manufactured in Finland)
  - the end of the cylinder tube is threaded, allowing the cylinder to be repaired if needed
  - the piston rod is fastened to the piston with a nyloc nut, which is also glued, minimizing the risk of the nut coming loose
  - the cylinder is interchangeable and has the same dimensions as HS70401000T
  - double-acting

  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - clevis Ø 30 mm / width 22 mm
  - thread G 1/2"
  - stroke 1000 mm
  - dimensions 1240 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - operating pressure 300 bar
  - painted over
