Hydraulic cylinder 70X40X1100 Repainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS70401100J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 1340 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, made in Finland with improved and reinforced construction
  - end on cylinder tube's end is threaded, allowing cylinder to be repaired when needed
  - piston rod is secured to the piston with a nyloc nut, which is also glued, minimizing the risk of nut coming loose
  - cylinder is replaceable and has same installation dimensions as HS70401100T

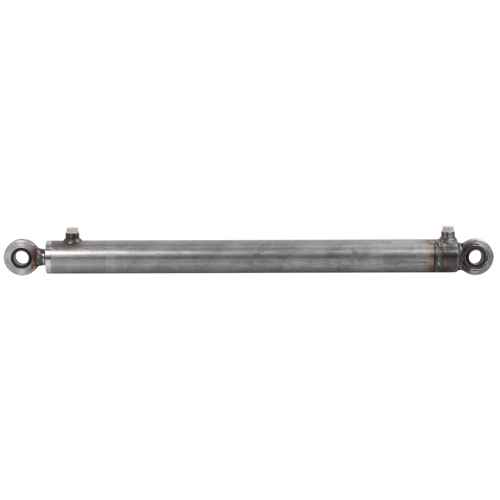

  Double-acting Hydraulic Cylinder 70x40x1100.
  Hydraulic cylinder can be converted to single-acting by plugging the upper hole with nipple HSH38.


  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - joint bearing 30 mm
  - threading G 3/8"
  - stroke 1100 mm
  - installation dimensions 1340 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - working pressure 300 bar
  - painted
