Hydraulic cylinder 70x40X200 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS7040200K

  Manufacturer

  CharacteristicsInstallation dimension 408 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

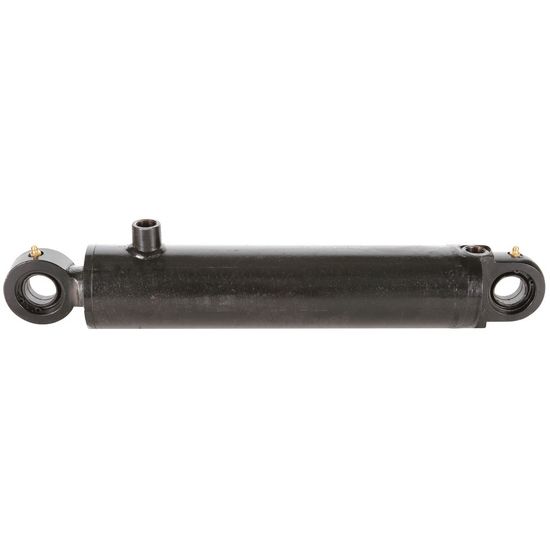

  Double-acting Hydraulic Cylinder 70x40X200.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH12.

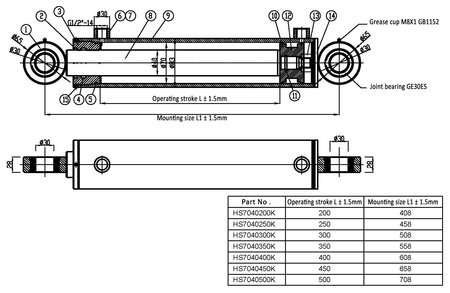

  Technical specification:
  - piston 70 mm
  - rod 40 mm
  - pivot bearing 30 mm
  - thread 1/2"
  - stroke length 200 mm
  - installation dimension 408 mm
  - working pressure max 210 bar
