Hydraulic cylinder 70X40X250 Repainted Longlife

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS7040250J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 490 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - end of the cylinder tube is threaded, so the cylinder can be repaired if needed
  - the piston rod is secured to the piston with a nyloc nut, which is also glued, minimizing the risk of the nut loosening
  - the cylinder is interchangeable and has the same installation dimensions as HS7040250T

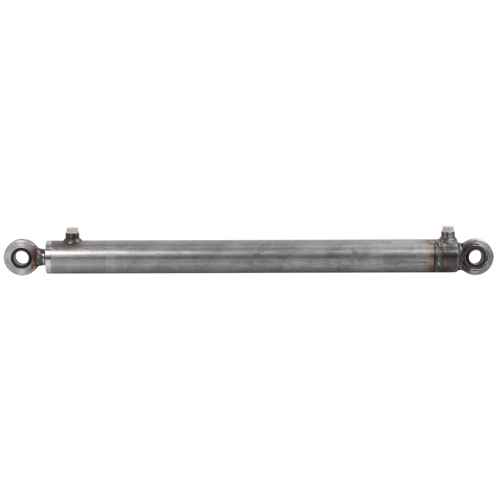

  Double-acting Hydraulic Cylinder 70x40x250.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with nipple HSH38.

  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - clevis joint 30 mm
  - thread G 3/8"
  - stroke 250 mm
  - installation dimensions 490 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - operating pressure 300 bar
  - painted over
