Hydraulic cylinder 70X40X400 Unpainted

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDHS7040400J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 640 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - end of the cylinder tube is threaded, so the cylinder can be repaired as needed
  - the piston rod is attached to the piston with a nyloc nut, which is also glued to minimize the risk of the nut loosening
  - the cylinder is replaceable and has the same dimensions as HS7040400T

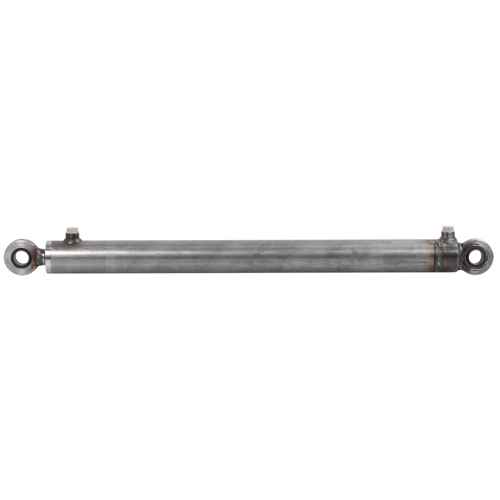

  Double-acting Hydraulic Cylinder 70x40x400.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH12.

  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - clevis 30 mm
  - thread G 1/2"
  - stroke 400 mm
  - dimensions 640 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - working pressure 300 bar
  - painted
