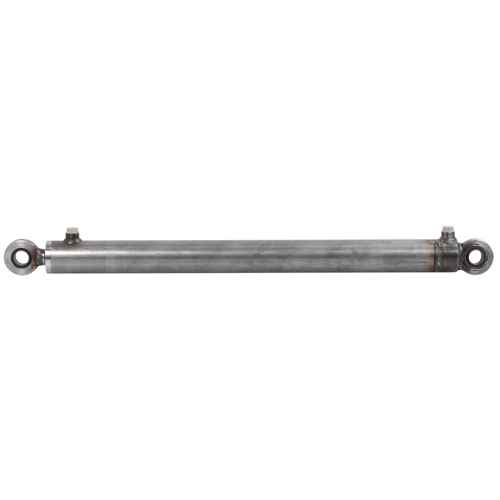

Hydraulic cylinder 70X40X600 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS7040600J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 840 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, made in Finland with improved and reinforced construction
  - end of cylinder tube threaded for possible repairs
  - piston rod attached to piston with a nyloc nut, additionally glued to minimize risk of nut loosening
  - interchangeable cylinder with same dimensions as HS7040600T

  Double-acting Hydraulic Cylinder 70x40x600.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.


  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - clevis pin 30 mm
  - thread G 3/8"
  - stroke 600 mm
  - installation dimensions 840 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - working pressure 300 bar
  - painted
