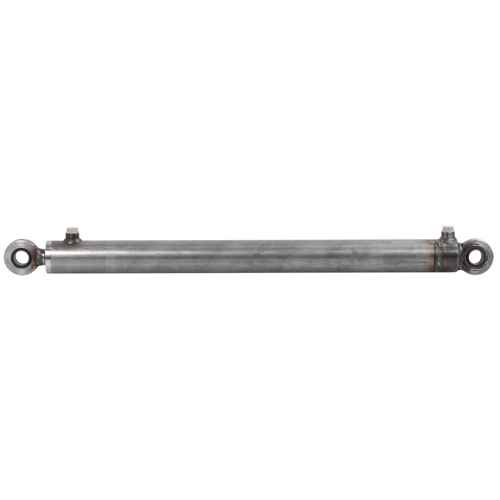

Hydraulic cylinder 70X40X700 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS7040700J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimension 940 mm
  Articulation bearing diameter 30 mm
  Double-acting (Can be converted to single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - the end of the cylinder tube is threaded, allowing the cylinder to be repaired if needed
  - the piston rod is attached to the piston with a nyloc nut, which is also glued, minimizing the risk of the nut coming loose
  - the cylinder is interchangeable and has the same installation dimensions as HS7040700T

  Double-acting Hydraulic Cylinder 70x40x700.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.


  Technical data:
  - piston Ø 70 mm
  - rod Ø 40 mm
  - joint bearing 30 mm
  - thread G 3/8"
  - stroke 700 mm
  - installation dimensions 940 mm
  - A 240 mm, C Ø 80 mm, D Ø 30 mm, E Ø 72 mm
  - working pressure 300 bar
  - painted over
