Hydraulic cylinder 80x40X200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS8040200K

  Manufacturer

  CharacteristicsInstallation dimension 423 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

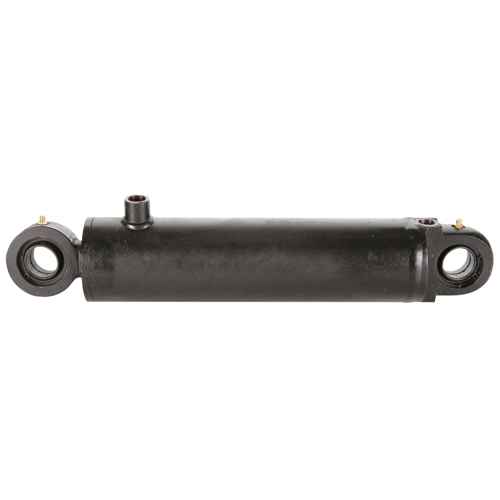

  Double-Acting Hydraulic Cylinder 80x40x200.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH12.

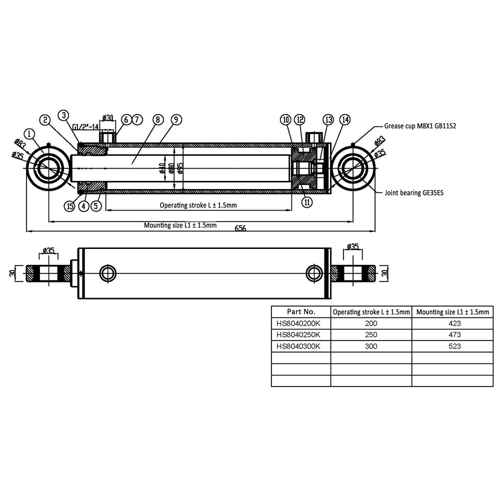

  Technical specifications:
  - piston 80 mm
  - rod 40 mm
  - bearing 35 mm
  - thread 1/2"
  - stroke length 200 mm
  - installation dimensions 423 mm
  - maximum working pressure 210 bar
