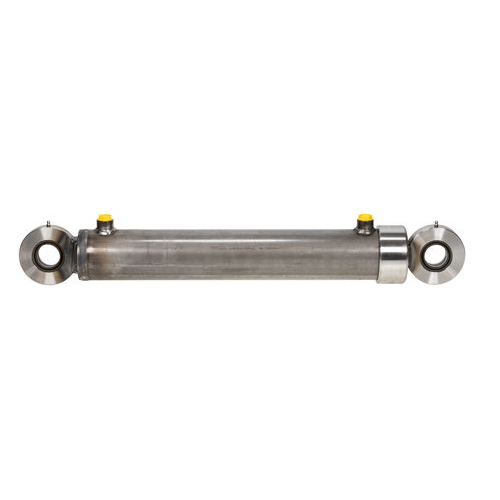

Hydraulic cylinder 80X50X700

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS8050700J

  Manufacturer

  CharacteristicsInstallation dimensions 980 mm
  Max working pressure 300 bar
  Double-acting (Can be converted to single-acting)

  Double Acting Hydraulic Cylinder 80x50x700.
  The hydraulic cylinder can be converted into single-acting by plugging the upper hole with a nipple HSH12.

  - Longlife cylinder kit, made in Finland, with improved and reinforced construction
  - the end on the cylinder arm side is threaded so that the cylinder can be repaired when needed
  - the piston rod is secured to the piston with a nyloc nut, which is also glued to minimize the risk of the nut coming loose
  - the cylinder is interchangeable and has the same dimensions as HS8050700T
  - double acting
  - unpainted

  Technical data:
  - piston Ø 80 mm
  - rod Ø 50 mm
  - plain bearing 40 mm
  - thread G 1/2"
  - stroke 700 mm
  - dimensions 980 mm
  - A 280 mm, B 104 mm, C Ø 90 mm, D Ø 40 mm, E Ø 105 mm
  - working pressure 300 bar
