Suction Hose 2" 51mm FLEXIT XF-R4 HI Flexibility - Price per meter

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDR4X051

  Manufacturer

  CharacteristicsPRICE/METER

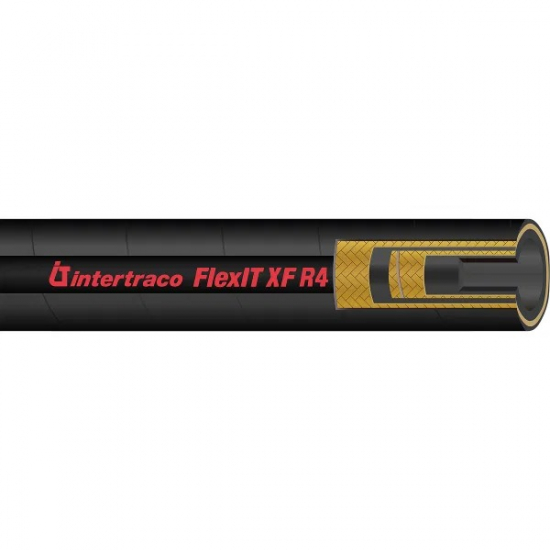

  - Highly flexible and versatile Intertraco Flexit XF R4 hose for hydraulic suction and return lines as well as other low-pressure applications
  - Suitable for mineral- and polyglycol-based oils, water-oil emulsions and water
  - Outer cover provides excellent abrasion resistance and flame protection (MSHA approved)

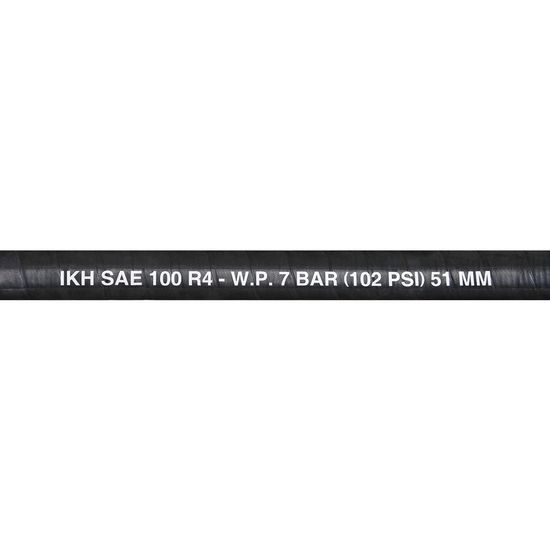

  - Complies with the SAE 100 R4 standard

  Technical data:
  - Operating temperature: -40...+100 °C (for water +85 °C)
  - Inner material: oil-, diesel- and water-resistant synthetic rubber
  - Outer material: synthetic rubber with excellent abrasion resistance and flame protection

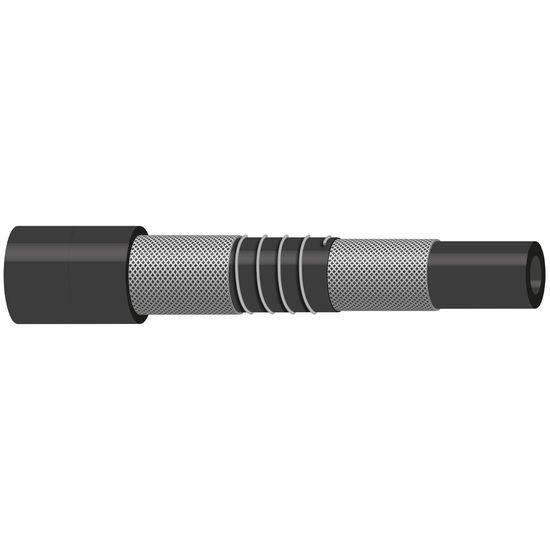

  - Reinforcement: two strong textile braids with embedded steel spiral
  - Nominal size: -32
  - Hose DN: 51
  - Inner diameter: 2" (51 mm)
  - Outer diameter: 62 mm
  - Minimum bend radius: 135 mm
  - Max. working pressure: 7 bar
  - Burst pressure: 28 bar
  - Vacuum: 0.8 bar
  - Weight: 1.54 kg/m
