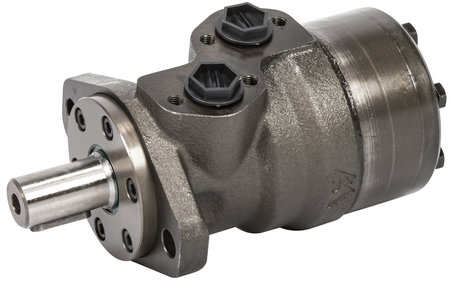

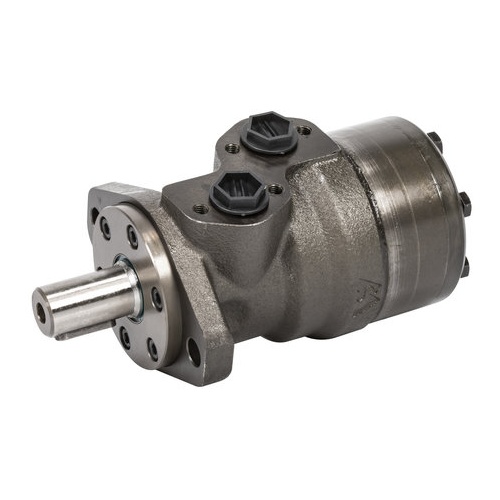

Hydraulic Motor Hmr 200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR200

  ManufacturerAGRILIFE

  CharacteristicsAxle diameter 25 mm
  Displacement 200 cm³

  - 25 mm shaft with woodruff keyway
  - connections G 1/2"
  - connection, drainage G 1/4"
  - Danfoss OMR interchangeable
  - combines high torque with compact size
  - applications: for example agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 200 cm³/r
  - max. speed continuously 300 / intermittent 375 rpm
  - max. torque continuously 297 / intermittent 380 Nm
  - max. power continuously 8.5 / intermittent 10 kW
  - max. pressure continuously 175 / intermittent 200 / peak 225 bar
  - max. differential pressure continuously 115 / intermittent 140 / peak 225 bar
  - max. flow continuously 60 / intermittent 75 l/min

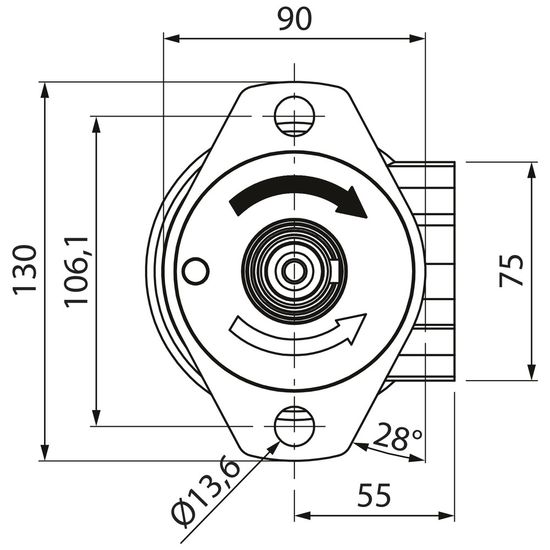

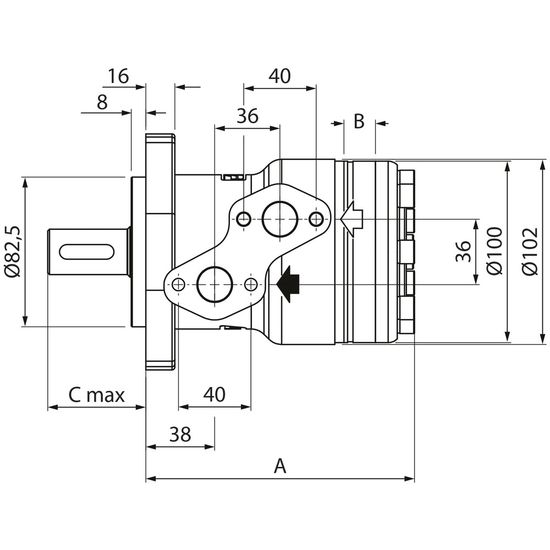

  - A 165.3 mm
  - B 34.8 mm
  - C 54 mm
  - weight 8.6 kg
