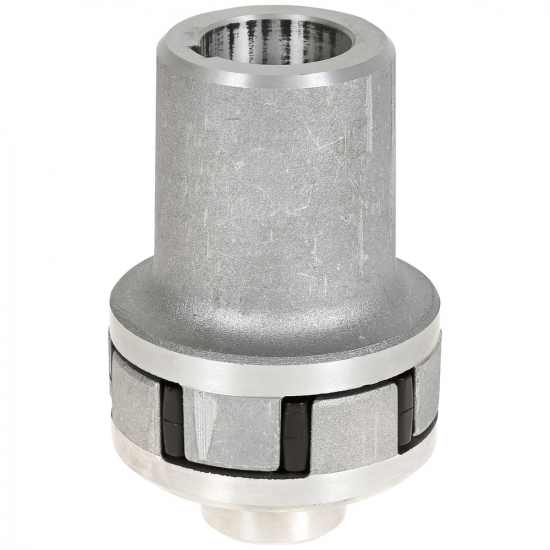

FLEXIBLE COUPLING KIT 86MM HE28 P+M+RUBBER

• Info
• Stock status

  Product IDH950185

  Manufacturer

  Characteristics- shaft Ø 38 mm
  - pump 2 series, tapered shaft 1:8 (euro)
  - type HE28
  - aluminium


  - type HE28
  - 2-series pump, tapered shaft 1:8 (euro)
  - electric motor IEC 132 (1500 rpm / 5.5 - 7.5 kW), shaft Ø 38 mm
  - diameter Ø 86 mm
  - length 134 mm
  - contains pump and motor side as well as intermediate rubber

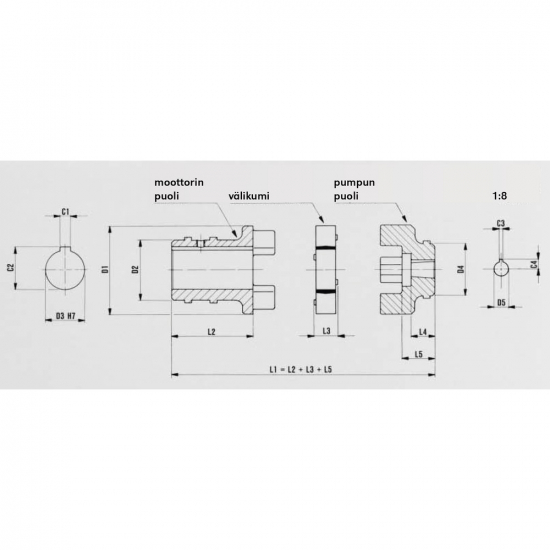

  Dimensions (mm):
  - D1 86
  - L1 134
  - D2 58
  - D3 38
  - L2 79
  - C1 10
  - C2 41.7
  - L3 23
  - D4 50
  - D5 14.17 (1:8)
  - L4 23
  - L5 32
  - C3 3.2
  - C4 9.7
