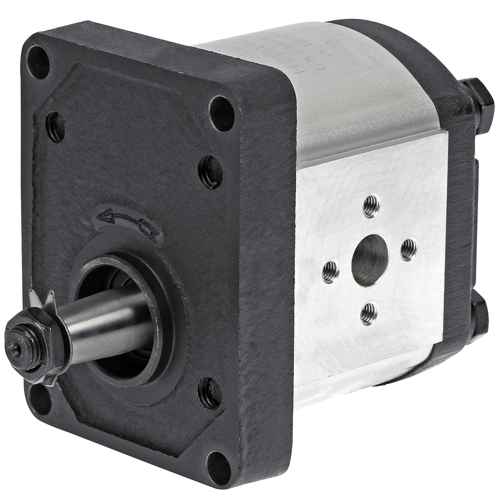

Hydraulic Pump 19 Group-2 Flange Coupling Counterclockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP2F19S

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8
  - counterclockwise rotation S (A)
  - displacement 19 cm³/r
  - max. 2500 rpm
  - max. pressure 200 bar
  - flow 27.36 l/min (at 1500 rpm)
  - flow 45.60 l/min (max. rpm)

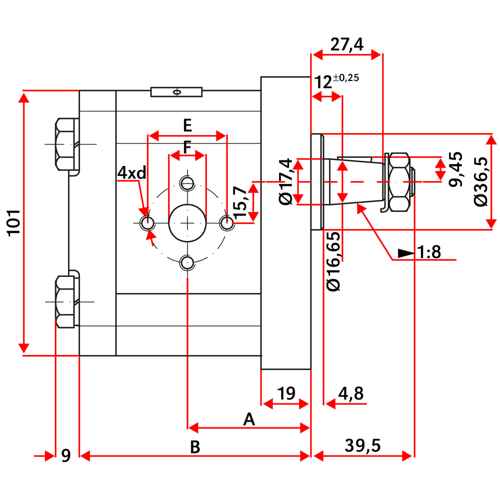

  - A 54 mm
  - B 103.5 mm
  - inlet E 39.7 mm / F 19 mm / d M8
  - outlet E 30.2 mm / F 14.2 mm / d M6
