Hydraulic pump 46 Group-3 Flange connection Clockwise

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHP3F46D

  Manufacturer

  Characteristics

  - aluminum housing
  - flange mounting
  - tapered shaft 1:8

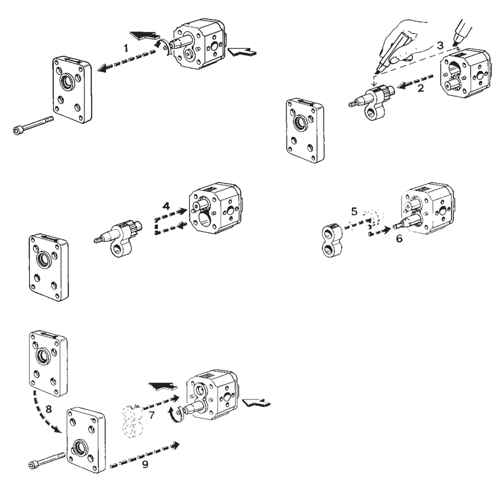

  - clockwise rotation D (C)
  - displacement 46 cm³/r
  - max. 2300 rpm
  - max. pressure 230 bar
  - flow 65.6 l/min (at 1500 rpm)
  - flow 100.5 l/min (max. rpm)

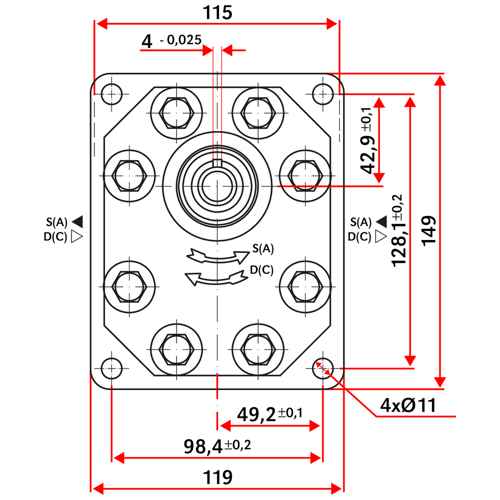

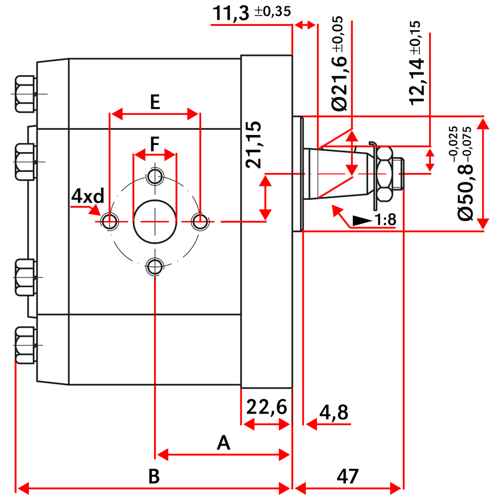

  - A 72.7 mm
  - B 149.8 mm
  - inlet E 51 mm / d M10 / F 27 mm
  - outlet E 40 mm / d M8 / F 19 mm
