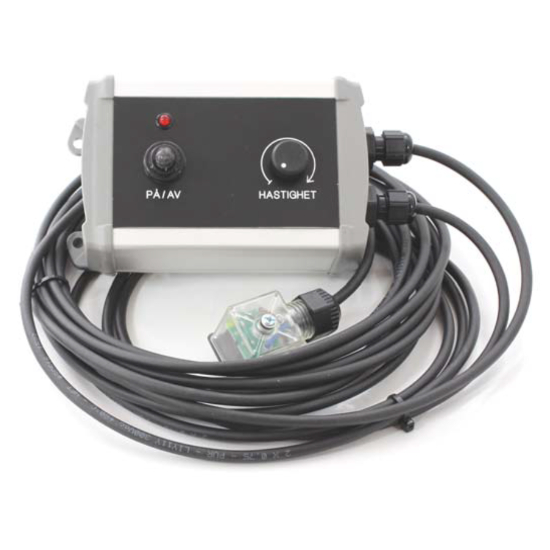

12–24V proportional controller with rocker switch and rotary control

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDB509400

  ManufacturerES Hydagent

  Characteristics

  Practical control system for operating one proportional function, such as a valve block or directional control valve.

  The rocker switch and rotary control allow simple, stepless adjustment of the function, for example to regulate hydraulic flow to a machine or implement.

  The system also features a separate on/off switch that can be used to activate an additional function.

  Built-in trimmer potentiometers allow easy fine-tuning of the circuit board without additional tools.

  FEATURES AND BENEFITS
  - Control of 1 proportional function
  - Rotary control for stepless adjustment
  - Rocker switch for easy operation
  - Separate on/off switch for an additional function
  - Easy adjustment with built-in trimmer potentiometers
  - Adjustable ramp function for smoother activation

  TECHNICAL SPECIFICATIONS
  - Supply voltage: 12–24 V
  - Frequency: 50–250 Hz
  - Ramp time: 0–5 seconds
  - Maximum current: 2,5 A
