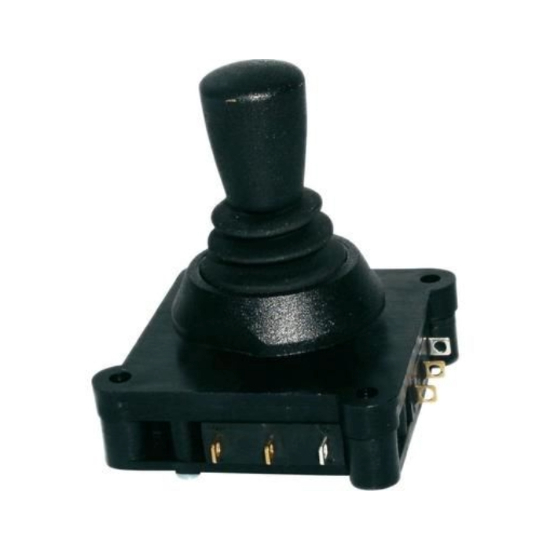

2-axis on/off joystick, spring return

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID100212

  ManufacturerES Hydagent

  Characteristics

  Compact, robust joystick with integrated switches for controlling electrical functions. The joystick has four operating positions but can also be configured for two positions, making it suitable for various types of machines and control systems.

  The supplied restrictor plates allow joystick movement along one axis (-), two axes (+) or diagonally (X). The joystick is spring-centred and automatically returns to its neutral position when released.

  FEATURES AND BENEFITS
  - Joystick with four operating positions
  - Can also be used with two operating positions
  - Adjustable movement direction using restrictor plates
  - Movement along one axis (-), two axes (+) or diagonally (X)
  - Automatic spring return to the centre position
  - Compact design for panel mounting
  - IP65 protection rating on the front

  TECHNICAL SPECIFICATIONS
  - Number of operating positions: 4 (can be limited to 2)
  - Spring return: Yes, to centre position
  - Switching capacity: 6 A at 250 V AC
  - Connection: Solder terminals
  - Dimensions (L x W x H): 44 x 44 x 65 mm
  - Panel cut-out diameter: 22 mm
  - Temperature range: -20 °C to +50 °C
  - Protection rating: IP65 (front)
