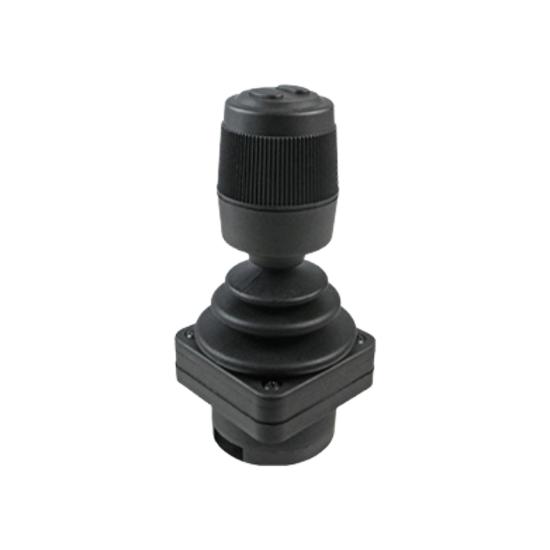

3-axis joystick with 2 buttons

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHF3116

  ManufacturerES Hydagent

  Characteristics

  Compact, high-precision 3-axis joystick in the HF series, using Hall-effect technology for accurate and reliable control of electrical functions. Contactless Hall-effect technology provides long service life and high precision, making the joystick suitable for demanding applications, including machine and hydraulic control.

  The joystick requires little operating force and delivers smooth, precise movement on all three axes. Its compact installation dimensions make integration easy even where mounting space is limited.

  The robust IP65-rated construction provides effective protection against dust and water jets, making the joystick suitable for use in demanding environments.

  FEATURES AND BENEFITS
  - 3-axis joystick with Hall-effect technology
  - Contactless technology for long service life
  - High precision and accuracy in all movements
  - Low operating force for comfortable use
  - Compact installation dimensions
  - Robust construction for demanding applications
  - IP65 protection rating
  - Wide temperature range

  TECHNICAL SPECIFICATIONS
  - Type: 3-axis joystick
  - Technology: Hall effect
  - Supply voltage: 5 V DC
  - Signal range: 0,5–4,5 V
  - Temperature range: -40 °C to +70 °C
  - Protection rating: IP65

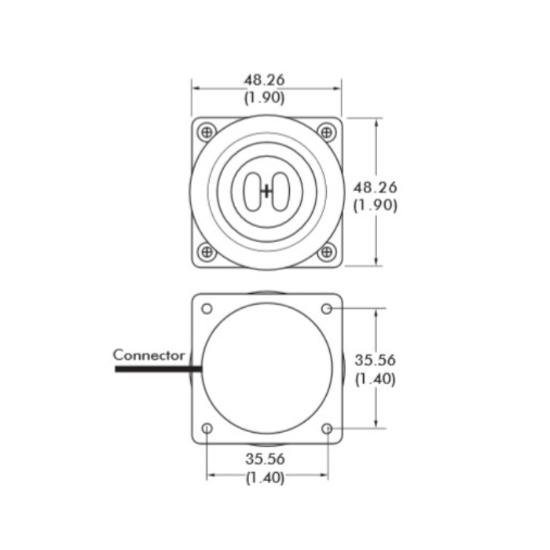

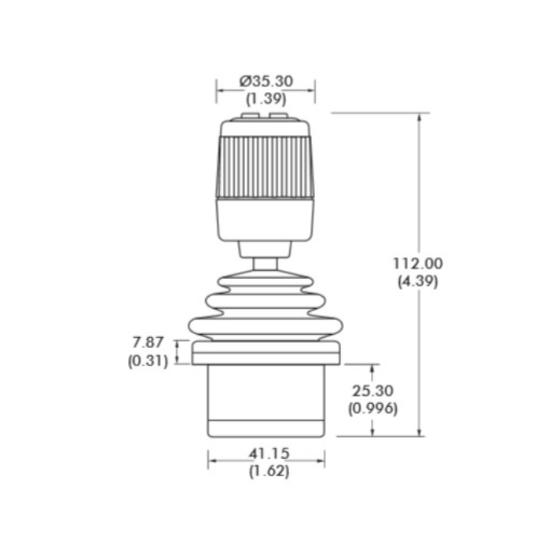

  - Dimensions: See image 2
