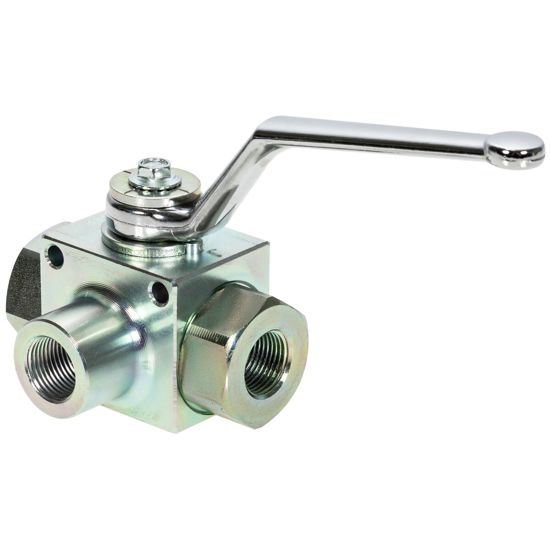

3-way ball valve BSP 1/2" 500bar T-bored

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK08-T

  Manufacturer

  CharacteristicsTyp: T-bored
  Max. pressure: 500 bar

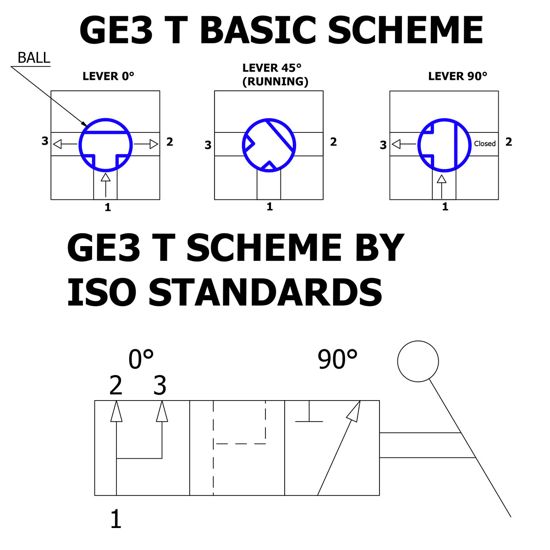

  - T-bored, uttag går to välja 1->2-3 tai 1->3
  - Material: förzinkat Steel
  - Seals NBR
  - Operating temperature -0...+100 °C
  - Slang DN 12
  - Thread G 1/2"
  - Max. pressure 500 bar

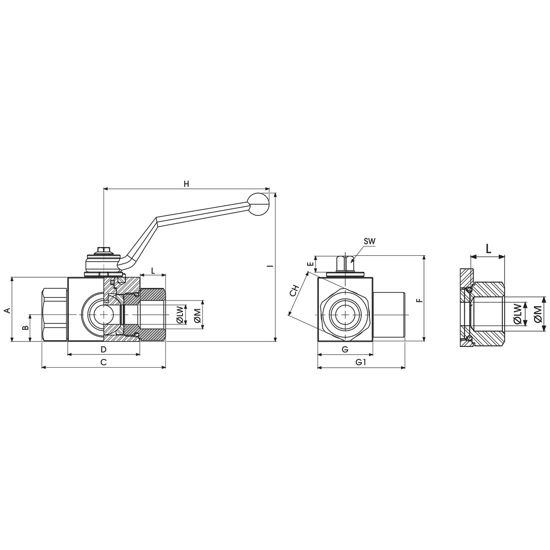

  Dimensions (mm):
  - A 43
  - B 18
  - C 83
  - D 48,4
  - E 11
  - F 57
  - G 37
  - G1 58,5
  - H 110
  - In 99,5
  - L 17
  - ØM G 1/2"
  - CH 32
  - SW 9
  - ØLW 13
  - Weight 0,82 kg
