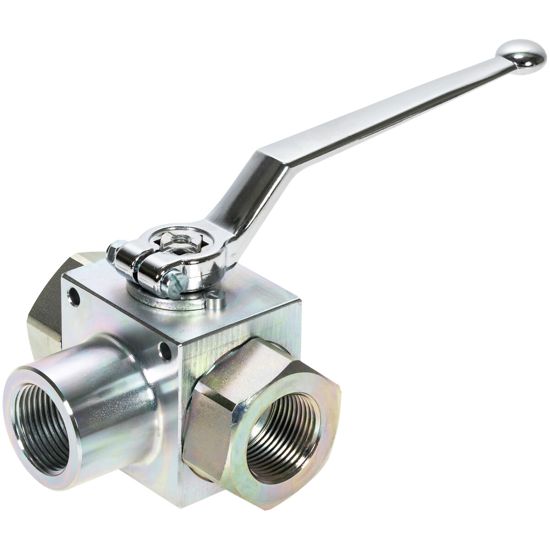

3-way ball valve BSP 1/2" 500bar T-bored

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK12-T

  Manufacturer

  CharacteristicsTyp: T-bored
  Max. pressure: 500 bar

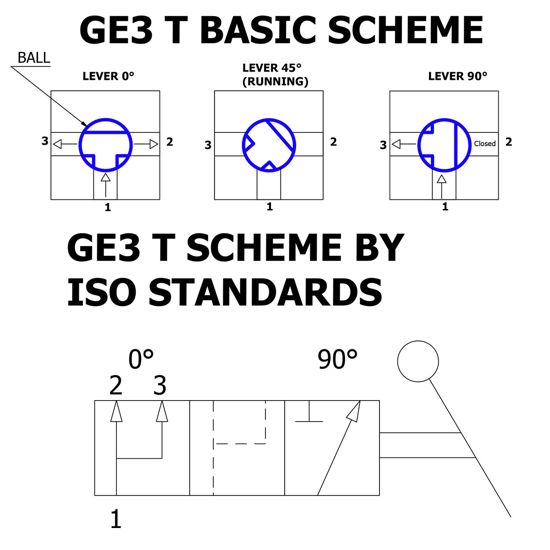

  - T-bored, uttag går to välja 1->2-3 tai 1->3
  - Material: förzinkat Steel
  - Seals NBR
  - Operating temperature -0...+100 °C
  - Slang DN 20
  - Thread G 3/4"
  - Max. pressure 500 bar

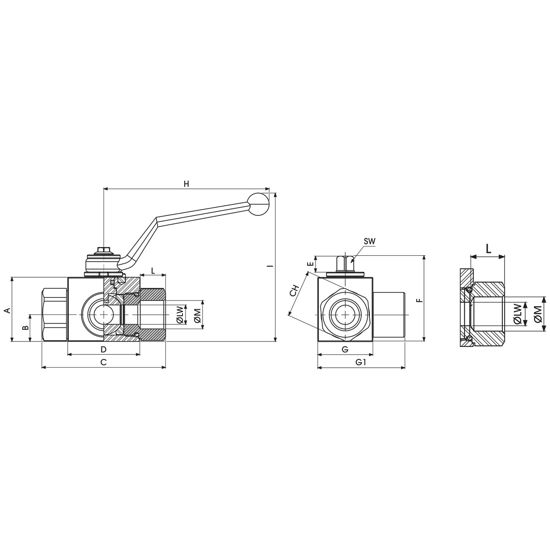

  Dimensions (mm):
  - A 57
  - B 23,4
  - C 95
  - D 62,5
  - E 14
  - F 73,5
  - G 49
  - G1 75
  - H 180
  - In 106,5
  - L 21
  - ØM G 3/4"
  - CH 41
  - SW 14
  - ØLW 20
  - Weight 1,58 kg
