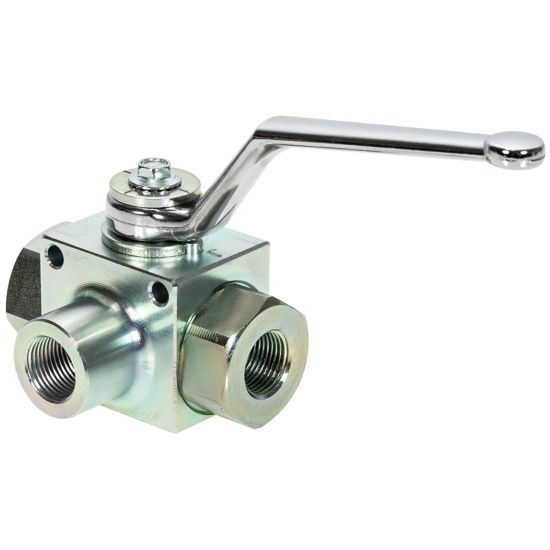

3-way ball valve BSP 1/4" 500bar T-bored

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK04-T

  Manufacturer

  CharacteristicsTyp: T-bored
  Max. pressure: 500 bar

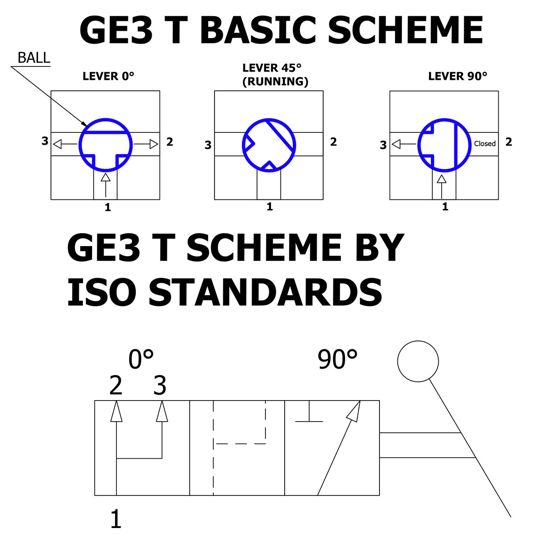

  - T-bored, uttag går to välja 1->2-3 tai 1->3
  - Material: förzinkat Steel
  - Seals NBR
  - Operating temperature -0...+100 °C
  - Slang DN 6
  - Thread G 1/4"
  - Max. pressure 500 bar

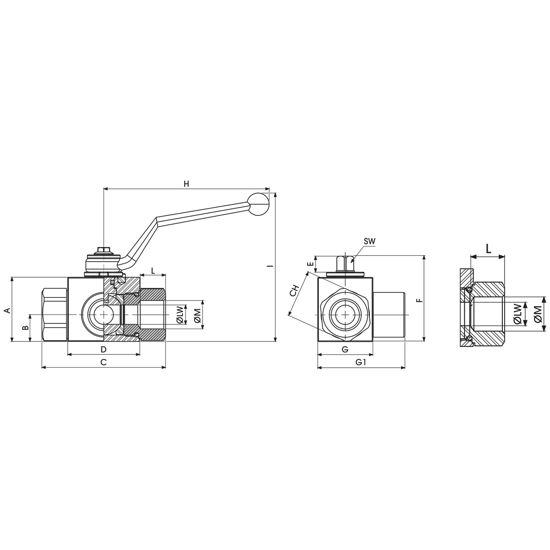

  Dimensions (mm):
  - A 35
  - B 14,5
  - C 71
  - D 42,4
  - E 11
  - F 49
  - G 30
  - G1 48,5
  - H 110
  - In 91,5
  - L 15,5
  - ØM G 1/4"
  - CH 24
  - SW 9
  - ØLW 6
  - Weight 0,53 kg
