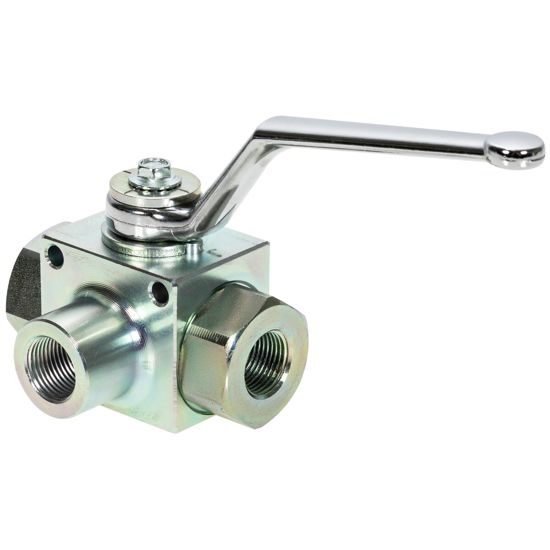

3-way ball valve BSP 3/8" 500bar T-bored

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID3BK06-T

  Manufacturer

  CharacteristicsTyp: T-bored
  Max. pressure: 500 bar

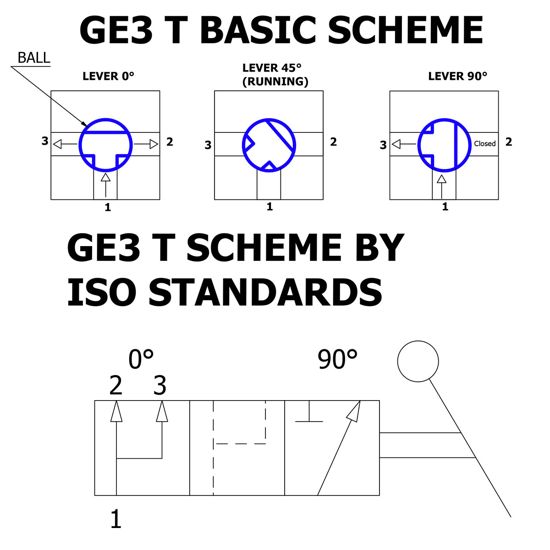

  - T-bored, uttag går to välja 1->2-3 tai 1->3
  - Material: förzinkat Steel
  - Seals NBR
  - Operating temperature -0...+100 °C
  - Slang DN 10
  - Thread G 3/8"
  - Max. pressure 500 bar

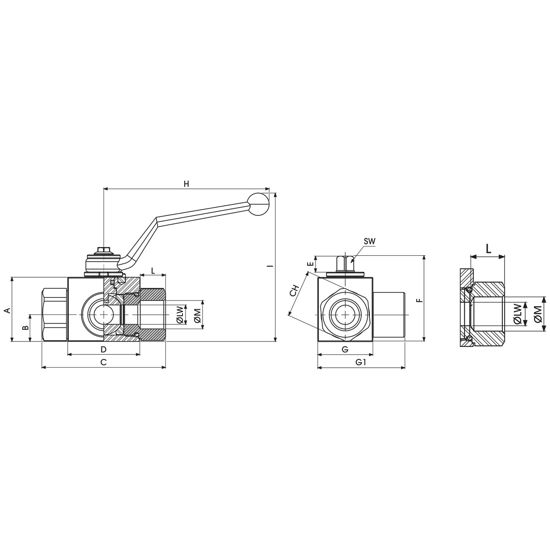

  Dimensions (mm):
  - A 40
  - B 17,4
  - C 73
  - D 44,4
  - E 11
  - F 54,25
  - G 35
  - G1 54,5
  - H 110
  - In 96,5
  - L 15,5
  - ØM G 3/8"
  - CH 30
  - SW 9
  - ØLW 10
  - Weight 0,69 kg
