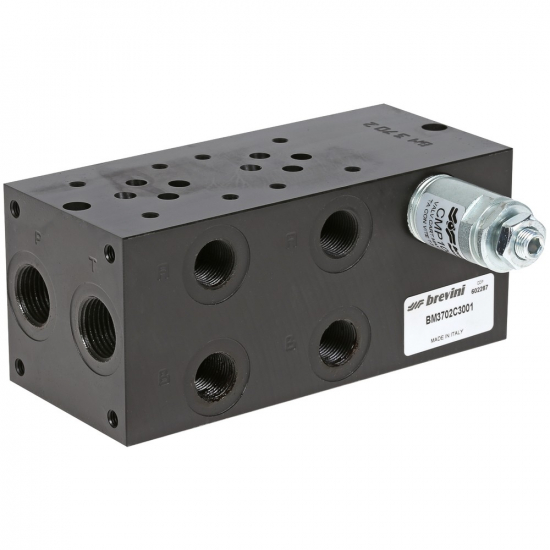

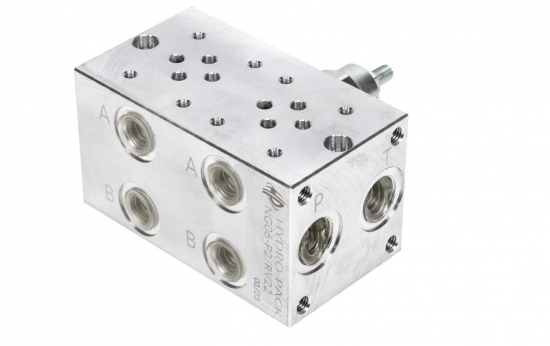

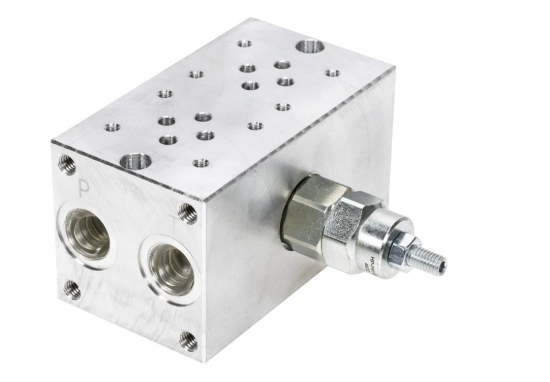

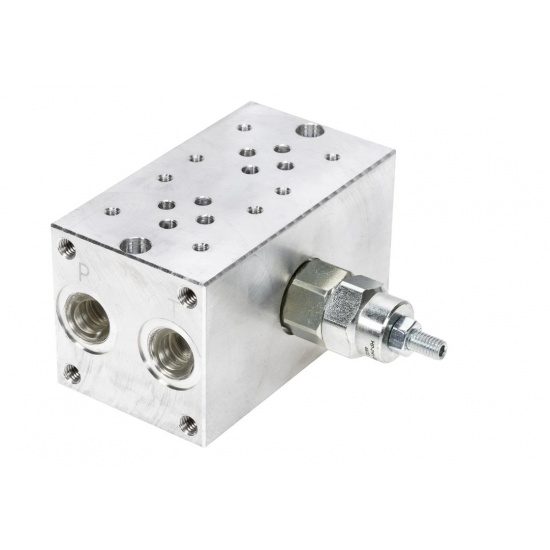

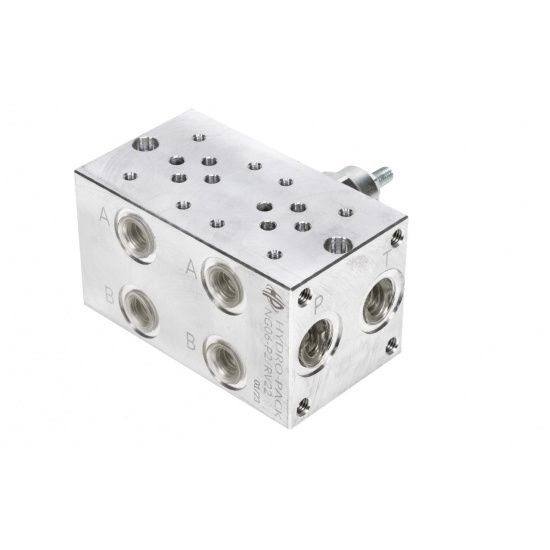

CETOP 3/NK6 Pressure Valve 3/8" 2-sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNG6206FESLP

  Manufacturer

  CharacteristicsMax. pressure: 320 bar

  Technical specification:

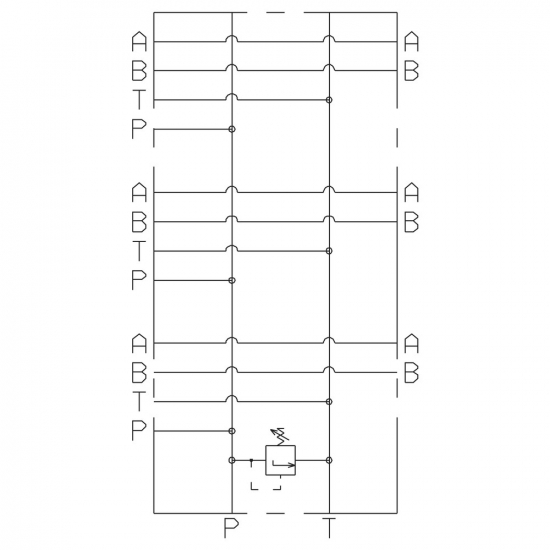

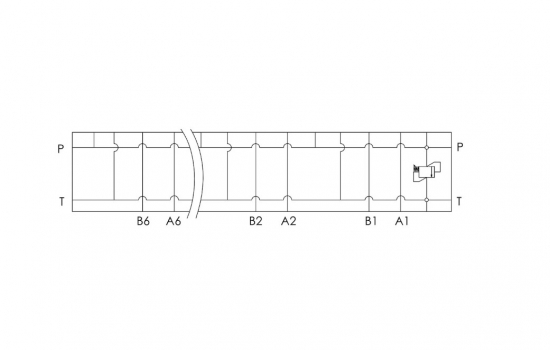

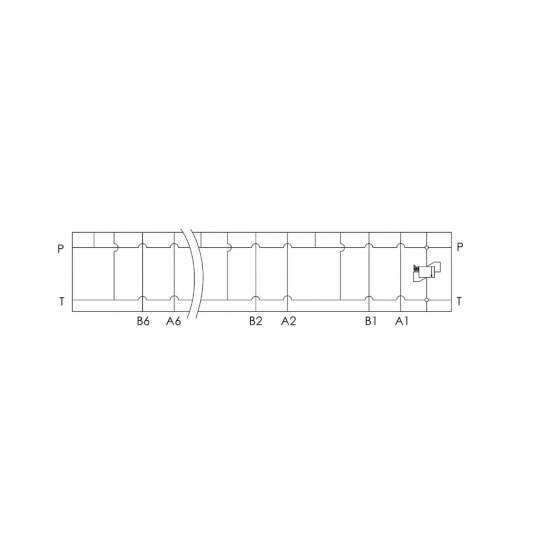

  - type: CETOP 3 / NK6 plate with pressure relief valve
  - for parallel valve assembly
  - 2 sections
  - material: steel
  - max. pressure: 320 bar
  - A/B port: G 3/8"
  - P/T port: G 1/2"
  - connection to pressure gauge: G 1/4"
  - mounting screws: M5x70
  - weight: 4.9 kg

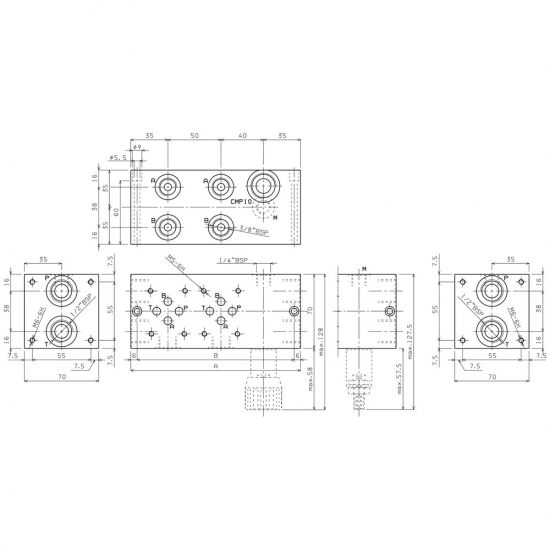

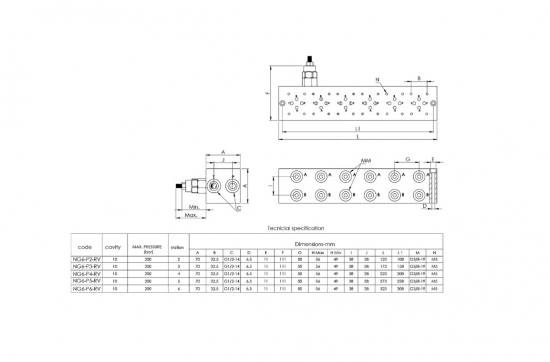

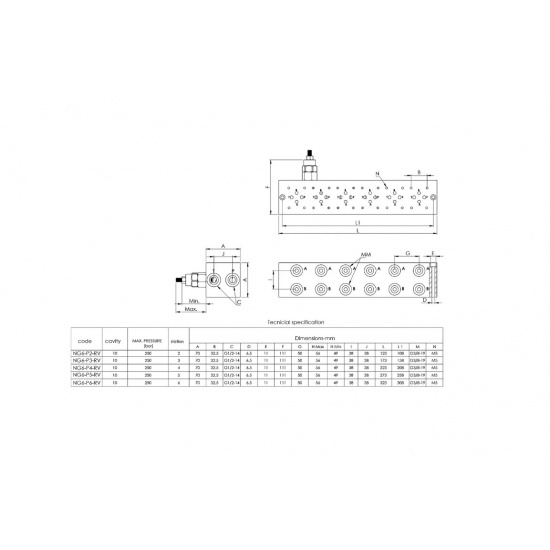

  Dimensions:
  - A: 160 mm
  - B: 148 mm
