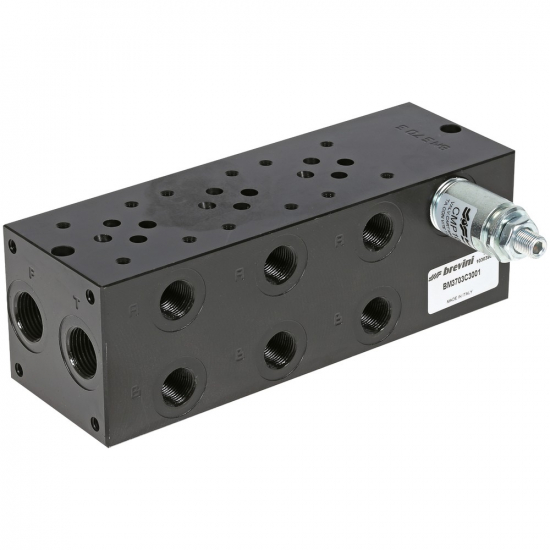

CETOP 3/NK6 Pressure Valve 3/8" 3-sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNG6306FESLP

  Manufacturer

  CharacteristicsMax. pressure: 320 bar

  Technical specification:

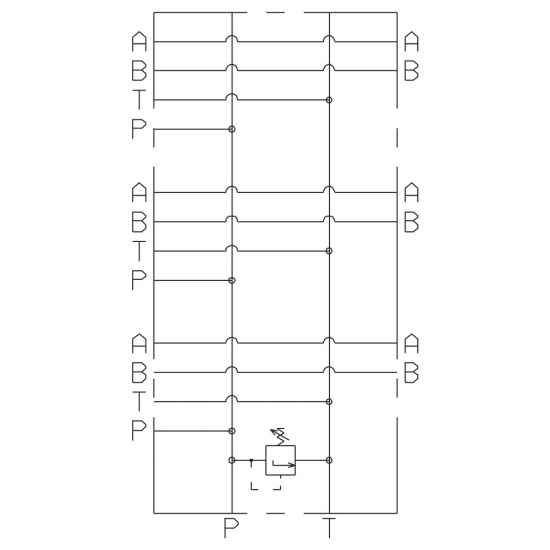

  - type: CETOP 3 / NK6 plate with pressure relief valve
  - for parallel valve mounting
  - 3 sections
  - material: steel
  - max. pressure: 320 bar
  - A/B-port: G 3/8"
  - P/T-port: G 1/2"
  - connection to pressure gauge: G 1/4"
  - fixing screws: M5x70
  - weight: 6.4 kg

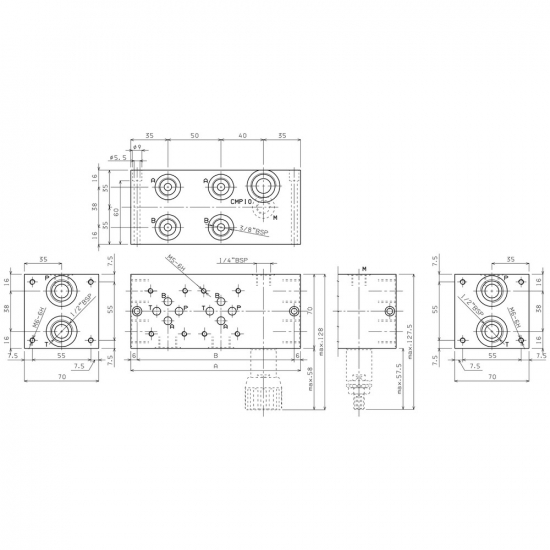

  Dimensions:
  - A: 210 mm
  - B: 198 mm
